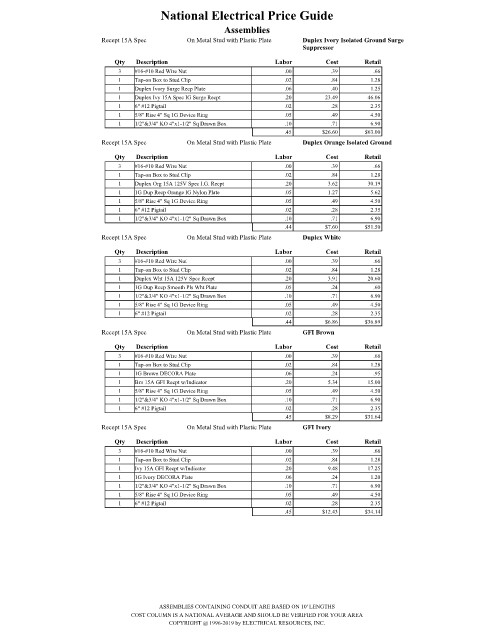

Page 2565 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 15A Spec On Metal Stud with Plastic Plate Duplex Ivory Isolated Ground Surge
Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivory Surge Recp Plate .06 .40 1.25
1 Duplex Ivy 15A Spec IG Surge Recpt .20 23.49 46.06
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $26.60 $63.00
Recept 15A Spec On Metal Stud with Plastic Plate Duplex Orange Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Org 15A 125V Spec I.G. Recpt .20 3.62 30.19
1 1G Dup Recp Orange IG Nylon Plate .05 1.27 5.62
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.44 $7.60 $51.50
Recept 15A Spec On Metal Stud with Plastic Plate Duplex White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Wht 15A 125V Spec Recpt .20 3.91 20.60
1 1G Dup Recp Smooth Pls Wht Plate .05 .24 .60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.44 $6.86 $36.89
Recept 15A Spec On Metal Stud with Plastic Plate GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Brown DECORA Plate .06 .24 .95
1 Brn 15A GFI Recpt w/Indicator .20 5.34 15.00
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.45 $8.29 $31.64
Recept 15A Spec On Metal Stud with Plastic Plate GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Ivy 15A GFI Recpt w/Indicator .20 9.48 17.25
1 1G Ivory DECORA Plate .06 .24 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.45 $12.43 $34.14

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
