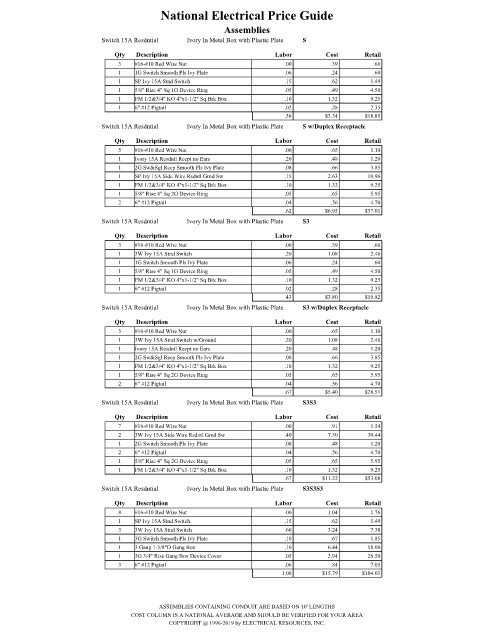

Page 2657 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 SP Ivy 15A Stnd Switch .15 .62 1.49
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 FM 1/2&3/4" KO 4"x1-1/2" Sq Brk Box .10 1.32 9.25
1 6" #12 Pigtail .02 .28 2.35
.38 $3.34 $18.85
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S w/Duplex Receptacle
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Ivory 15A Resdntl Recpt no Ears .20 .48 1.20
1 2G Sw&Sgl Recp Smooth Pls Ivy Plate .08 .66 3.85
1 SP Ivy 15A Side Wire Rsdntl Grnd Sw .15 2.63 10.96
1 FM 1/2&3/4" KO 4"x1-1/2" Sq Brk Box .10 1.32 9.25
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.62 $6.95 $37.01
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S3
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Ivy 15A Stnd Switch .20 1.08 2.46
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 FM 1/2&3/4" KO 4"x1-1/2" Sq Brk Box .10 1.32 9.25
1 6" #12 Pigtail .02 .28 2.35
.43 $3.80 $19.82
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S3 w/Duplex Receptacle
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 3W Ivy 15A Stnd Switch w/Ground .20 1.08 2.46
1 Ivory 15A Resdntl Recpt no Ears .20 .48 1.20
1 2G Sw&Sgl Recp Smooth Pls Ivy Plate .08 .66 3.85
1 FM 1/2&3/4" KO 4"x1-1/2" Sq Brk Box .10 1.32 9.25
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.67 $5.40 $28.51
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
2 3W Ivy 15A Side Wire Rsdntl Grnd Sw .40 7.30 30.44
1 2G Switch Smooth Pls Ivy Plate .08 .48 1.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 FM 1/2&3/4" KO 4"x1-1/2" Sq Brk Box .10 1.32 9.25
.67 $11.22 $53.08
Switch 15A Resdntial Ivory In Metal Box with Plastic Plate S3S3S3
Qty Description Labor Cost Retail
8 #16-#10 Red Wire Nut .00 1.04 1.76
1 SP Ivy 15A Stnd Switch .15 .62 1.49
3 3W Ivy 15A Stnd Switch .60 3.24 7.38
1 3G Switch Smooth Pls Ivy Plate .10 .67 1.85
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
3 6" #12 Pigtail .06 .84 7.05
1.06 $15.79 $104.03

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
