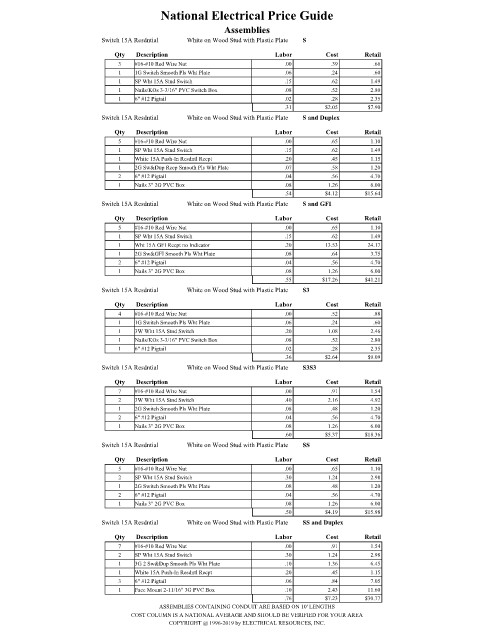

Page 2664 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Resdntial White on Wood Stud with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 SP Wht 15A Stnd Switch .15 .62 1.49
1 Nails/KOs 3-3/16" PVC Switch Box .08 .52 2.80
1 6" #12 Pigtail .02 .28 2.35
.31 $2.05 $7.90
Switch 15A Resdntial White on Wood Stud with Plastic Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Wht 15A Stnd Switch .15 .62 1.49
1 White 15A Push-In Resdntl Recpt .20 .45 1.15
1 2G Sw&Dup Recp Smooth Pls Wht Plate .07 .58 1.20
2 6" #12 Pigtail .04 .56 4.70
1 Nails 3" 2G PVC Box .08 1.26 6.00
.54 $4.12 $15.64
Switch 15A Resdntial White on Wood Stud with Plastic Plate S and GFI
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Wht 15A Stnd Switch .15 .62 1.49
1 Wht 15A GFI Recpt no Indicator .20 13.53 24.17
1 2G Sw&GFI Smooth Pls Wht Plate .08 .64 3.75
2 6" #12 Pigtail .04 .56 4.70
1 Nails 3" 2G PVC Box .08 1.26 6.00
.55 $17.26 $41.21
Switch 15A Resdntial White on Wood Stud with Plastic Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 3W Wht 15A Stnd Switch .20 1.08 2.46
1 Nails/KOs 3-3/16" PVC Switch Box .08 .52 2.80
1 6" #12 Pigtail .02 .28 2.35
.36 $2.64 $9.09
Switch 15A Resdntial White on Wood Stud with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
2 3W Wht 15A Stnd Switch .40 2.16 4.92
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 6" #12 Pigtail .04 .56 4.70
1 Nails 3" 2G PVC Box .08 1.26 6.00
.60 $5.37 $18.36
Switch 15A Resdntial White on Wood Stud with Plastic Plate SS
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 SP Wht 15A Stnd Switch .30 1.24 2.98
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 6" #12 Pigtail .04 .56 4.70
1 Nails 3" 2G PVC Box .08 1.26 6.00
.50 $4.19 $15.98
Switch 15A Resdntial White on Wood Stud with Plastic Plate SS and Duplex
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
2 SP Wht 15A Stnd Switch .30 1.24 2.98
1 3G 2 Sw&Dup Smooth Pls Wht Plate .10 1.36 6.45
1 White 15A Push-In Resdntl Recpt .20 .45 1.15
3 6" #12 Pigtail .06 .84 7.05
1 Face Mount 2-11/16" 3G PVC Box .10 2.43 11.60
.76 $7.23 $30.77
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
