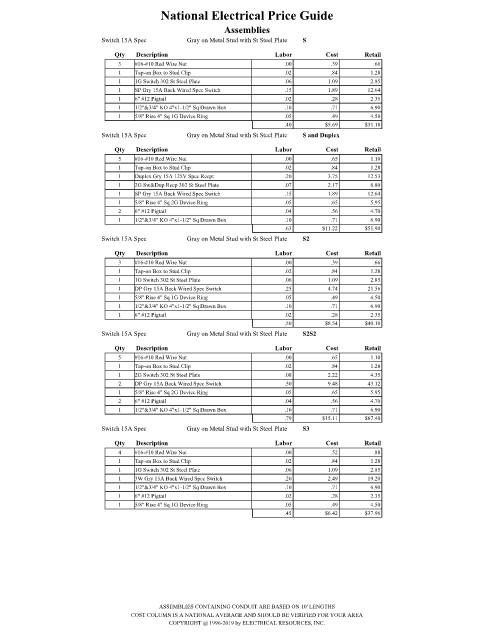

Page 2673 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Spec Gray on Metal Stud with St Steel Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 SP Gry 15A Back Wired Spec Switch .15 1.89 12.64
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $5.69 $31.18
Switch 15A Spec Gray on Metal Stud with St Steel Plate S and Duplex

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Gry 15A 125V Spec Recpt .20 3.75 12.53
1 2G Sw&Dup Recp 302 St Steel Plate .07 2.17 6.80
1 SP Gry 15A Back Wired Spec Switch .15 1.89 12.64
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.63 $11.22 $51.90
Switch 15A Spec Gray on Metal Stud with St Steel Plate S2

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 DP Gry 15A Back Wired Spec Switch .25 4.74 21.56
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.50 $8.54 $40.10
Switch 15A Spec Gray on Metal Stud with St Steel Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Switch 302 St Steel Plate .08 2.22 4.35
2 DP Gry 15A Back Wired Spec Switch .50 9.48 43.12
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.79 $15.11 $67.40
Switch 15A Spec Gray on Metal Stud with St Steel Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 3W Gry 15A Back Wired Spec Switch .20 2.49 19.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $6.42 $37.96

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
