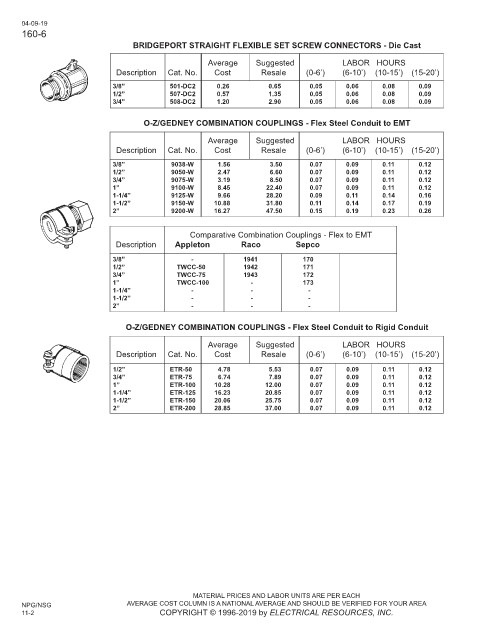

Page 274 - National Electrical Price Guide

04-09-19
160-6
BRIDGEPORT STRAIGHT FLEXIBLE SET SCREW CONNECTORS - Die Cast

Average Suggested LABOR HOURS
Description Cat. No. Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)

3/8” 501-DC2 0.26 0.65 0.05 0.06 0.08 0.09
1/2” 507-DC2 0.57 1.35 0.05 0.06 0.08 0.09
3/4” 508-DC2 1.20 2.90 0.05 0.06 0.08 0.09

O-Z/GEDNEY COMBINATION COUPLINGS - Flex Steel Conduit to EMT

Average Suggested LABOR HOURS
Description Cat. No. Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)

3/8” 9038-W 1.56 3.50 0.07 0.09 0.11 0.12
1/2” 9050-W 2.47 6.60 0.07 0.09 0.11 0.12
3/4” 9075-W 3.19 8.50 0.07 0.09 0.11 0.12
1” 9100-W 8.45 22.40 0.07 0.09 0.11 0.12
1-1/4” 9125-W 9.66 28.20 0.09 0.11 0.14 0.16
1-1/2” 9150-W 10.88 31.80 0.11 0.14 0.17 0.19
2” 9200-W 16.27 47.50 0.15 0.19 0.23 0.26

Comparative Combination Couplings - Flex to EMT
Description Appleton Raco Sepco
3/8” - 1941 170
1/2” TWCC-50 1942 171
3/4” TWCC-75 1943 172
1” TWCC-100 - 173
1-1/4” - - -
1-1/2” - - -
2” - - -

O-Z/GEDNEY COMBINATION COUPLINGS - Flex Steel Conduit to Rigid Conduit
Average Suggested LABOR HOURS
Description Cat. No. Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
1/2” ETR-50 4.78 5.53 0.07 0.09 0.11 0.12
3/4” ETR-75 6.74 7.89 0.07 0.09 0.11 0.12
1” ETR-100 10.28 12.00 0.07 0.09 0.11 0.12
1-1/4” ETR-125 16.23 20.85 0.07 0.09 0.11 0.12
1-1/2” ETR-150 20.06 25.75 0.07 0.09 0.11 0.12
2” ETR-200 28.85 37.00 0.07 0.09 0.11 0.12

MATERIAL PRICES AND LABOR UNITS ARE PER EACH
NPG/NSG AVERAGE COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
11-2 COPYRIGHT © 1996-2019 by ELECTRICAL RESOURCES, INC.
