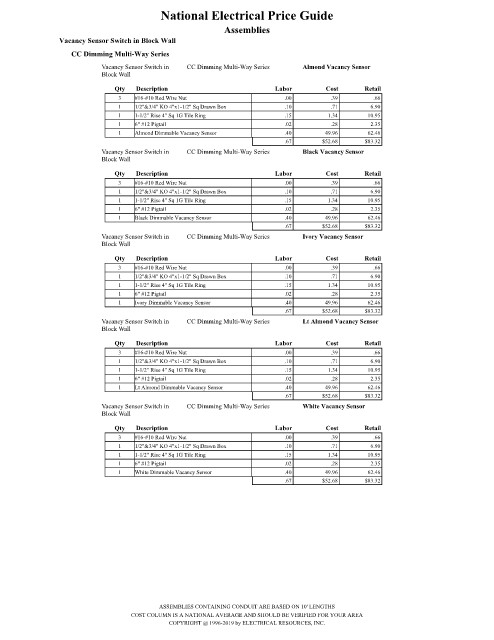

Page 2823 - National Electrical Price Guide
P. 2823
National Electrical Price Guide
Assemblies
Vacancy Sensor Switch in Block Wall
CC Dimming Multi-Way Series
Vacancy Sensor Switch in CC Dimming Multi-Way Series Almond Vacancy Sensor
Block Wall
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 Almond Dimmable Vacancy Sensor .40 49.96 62.46
.67 $52.68 $83.32
Vacancy Sensor Switch in CC Dimming Multi-Way Series Black Vacancy Sensor
Block Wall
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 Black Dimmable Vacancy Sensor .40 49.96 62.46
.67 $52.68 $83.32
Vacancy Sensor Switch in CC Dimming Multi-Way Series Ivory Vacancy Sensor
Block Wall
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 Ivory Dimmable Vacancy Sensor .40 49.96 62.46
.67 $52.68 $83.32
Vacancy Sensor Switch in CC Dimming Multi-Way Series Lt Almond Vacancy Sensor
Block Wall
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 Lt Almond Dimmable Vacancy Sensor .40 49.96 62.46
.67 $52.68 $83.32
Vacancy Sensor Switch in CC Dimming Multi-Way Series White Vacancy Sensor
Block Wall
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 White Dimmable Vacancy Sensor .40 49.96 62.46
.67 $52.68 $83.32
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
