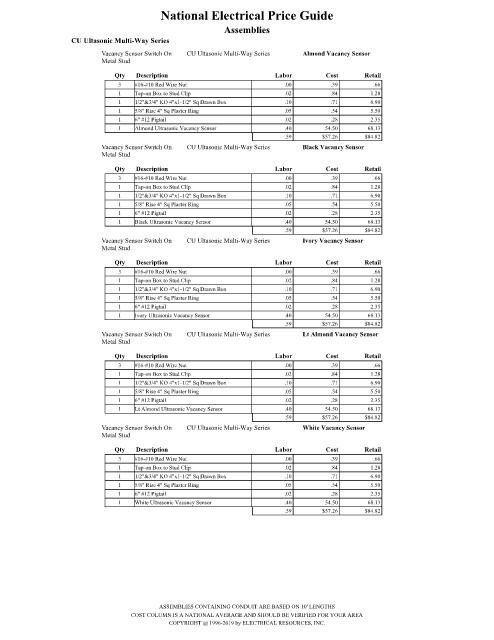

Page 2833 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
CU Ultasonic Multi-Way Series
Vacancy Sensor Switch On CU Ultasonic Multi-Way Series Almond Vacancy Sensor
Metal Stud
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 Almond Ultrasonic Vacancy Sensor .40 54.50 68.13
.59 $57.26 $84.82
Vacancy Sensor Switch On CU Ultasonic Multi-Way Series Black Vacancy Sensor
Metal Stud

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 Black Ultrasonic Vacancy Sensor .40 54.50 68.13
.59 $57.26 $84.82
Vacancy Sensor Switch On CU Ultasonic Multi-Way Series Ivory Vacancy Sensor
Metal Stud
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 Ivory Ultrasonic Vacancy Sensor .40 54.50 68.13
.59 $57.26 $84.82
Vacancy Sensor Switch On CU Ultasonic Multi-Way Series Lt Almond Vacancy Sensor
Metal Stud
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 Lt Almond Ultrasonic Vacancy Sensor .40 54.50 68.13
.59 $57.26 $84.82
Vacancy Sensor Switch On CU Ultasonic Multi-Way Series White Vacancy Sensor
Metal Stud
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq Plaster Ring .05 .54 5.50
1 6" #12 Pigtail .02 .28 2.35
1 White Ultrasonic Vacancy Sensor .40 54.50 68.13
.59 $57.26 $84.82

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
