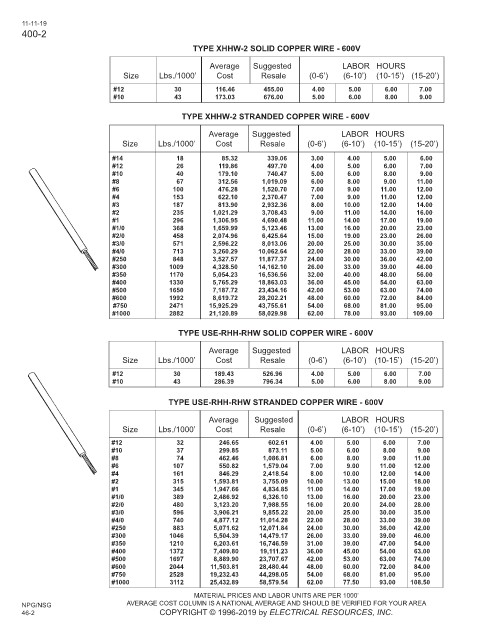

Page 912 - National Electrical Price Guide

11-11-19
400-2

TYPE XHHW-2 SOLID COPPER WIRE - 600V
Average Suggested LABOR HOURS
Size Lbs./1000’ Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
#12 30 116.46 455.00 4.00 5.00 6.00 7.00
#10 43 173.03 676.00 5.00 6.00 8.00 9.00

TYPE XHHW-2 STRANDED COPPER WIRE - 600V

Average Suggested LABOR HOURS
Size Lbs./1000’ Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)

#14 18 85.32 339.06 3.00 4.00 5.00 6.00
#12 26 119.86 497.70 4.00 5.00 6.00 7.00
#10 40 179.10 740.47 5.00 6.00 8.00 9.00
#8 67 312.56 1,019.09 6.00 8.00 9.00 11.00
#6 100 476.28 1,520.70 7.00 9.00 11.00 12.00
#4 153 622.10 2,370.47 7.00 9.00 11.00 12.00
#3 187 813.90 2,932.36 8.00 10.00 12.00 14.00
#2 235 1,021.29 3,708.43 9.00 11.00 14.00 16.00
#1 296 1,306.95 4,690.48 11.00 14.00 17.00 19.00
#1/0 368 1,659.99 5,123.46 13.00 16.00 20.00 23.00
#2/0 458 2,074.96 6,425.64 15.00 19.00 23.00 26.00
#3/0 571 2,596.22 8,013.06 20.00 25.00 30.00 35.00
#4/0 713 3,260.29 10,062.64 22.00 28.00 33.00 39.00
#250 848 3,527.57 11,877.37 24.00 30.00 36.00 42.00
#300 1009 4,328.50 14,162.10 26.00 33.00 39.00 46.00
#350 1170 5,054.23 16,536.56 32.00 40.00 48.00 56.00
#400 1330 5,765.29 18,863.03 36.00 45.00 54.00 63.00
#500 1650 7,187.72 23,434.16 42.00 53.00 63.00 74.00
#600 1992 8,619.72 28,202.21 48.00 60.00 72.00 84.00
#750 2471 15,925.29 43,755.61 54.00 68.00 81.00 95.00
#1000 2882 21,120.89 58,029.98 62.00 78.00 93.00 109.00

TYPE USE-RHH-RHW SOLID COPPER WIRE - 600V
Average Suggested LABOR HOURS
Size Lbs./1000’ Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
#12 30 189.43 526.96 4.00 5.00 6.00 7.00
#10 43 286.39 796.34 5.00 6.00 8.00 9.00

TYPE USE-RHH-RHW STRANDED COPPER WIRE - 600V

Average Suggested LABOR HOURS
Size Lbs./1000’ Cost Resale (0-6’) (6-10’) (10-15’) (15-20’)
#12 32 246.65 602.61 4.00 5.00 6.00 7.00
#10 37 299.85 873.11 5.00 6.00 8.00 9.00
#8 74 462.46 1,086.81 6.00 8.00 9.00 11.00
#6 107 550.82 1,579.04 7.00 9.00 11.00 12.00
#4 161 846.29 2,418.54 8.00 10.00 12.00 14.00
#2 315 1,593.81 3,755.09 10.00 13.00 15.00 18.00
#1 345 1,947.66 4,834.85 11.00 14.00 17.00 19.00
#1/0 389 2,486.92 6,326.10 13.00 16.00 20.00 23.00
#2/0 480 3,123.20 7,988.55 16.00 20.00 24.00 28.00
#3/0 596 3,906.21 9,855.22 20.00 25.00 30.00 35.00
#4/0 740 4,877.12 11,014.28 22.00 28.00 33.00 39.00
#250 883 5,071.62 12,071.84 24.00 30.00 36.00 42.00
#300 1046 5,504.39 14,479.17 26.00 33.00 39.00 46.00
#350 1210 6,203.61 16,746.59 31.00 39.00 47.00 54.00
#400 1372 7,409.80 19,111.23 36.00 45.00 54.00 63.00
#500 1697 8,889.90 23,707.67 42.00 53.00 63.00 74.00
#600 2044 11,503.81 28,480.44 48.00 60.00 72.00 84.00
#750 2528 19,232.43 44,298.05 54.00 68.00 81.00 95.00
#1000 3112 25,432.89 58,579.54 62.00 77.50 93.00 108.50
MATERIAL PRICES AND LABOR UNITS ARE PER 1000’
NPG/NSG AVERAGE COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
46-2 COPYRIGHT © 1996-2019 by ELECTRICAL RESOURCES, INC.
