Page 27 - ZKTime.net3_.0-Software-User-Manual-V1.0
P. 27

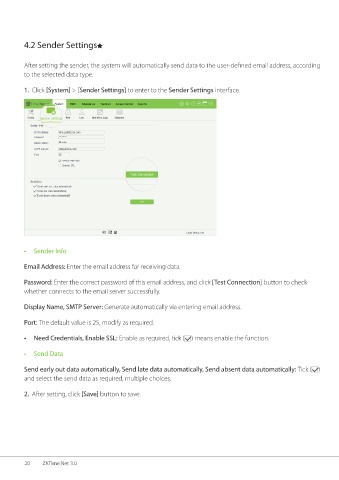

4.2 Sender Settings
After setting the sender, the system will automatically send data to the user-defined email address, according
to the selected data type.
1. Click [System] > [Sender Settings] to enter to the Sender Settings interface.
• Sender Info
Email Address: Enter the email address for receiving data.
Password: Enter the correct password of this email address, and click [Test Connection] button to check
whether connects to the email server successfully.
Display Name, SMTP Server: Generate automatically via entering email address.
Port: The default value is 25, modify as required.
• Need Credentials, Enable SSL: Enable as required, tick ( ) means enable the function.
• Send Data
Send early out data automatically, Send late data automatically, Send absent data automatically: Tick ( )
and select the send data as required, multiple choices.
2. After setting, click [Save] button to save.
20 ZKTime.Net 3.0
