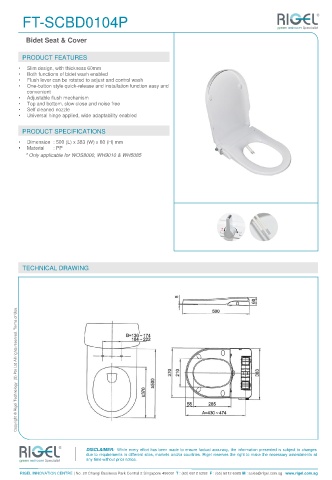

Page 118 - Rigel - Streamline Catalog Mobile

FT-SCBD0104P

Bidet Seat & Cover

PRODUCT FEATURES
• Slim design, with thickness 60mm
• Both functions of bidet wash enabled
• Flush lever can be rotated to adjust and control wash
• One-button style quick-release and installation function easy and
convenient
• Adjustable flush mechanism
• Top and bottom, slow close and noise free
• Self cleaned nozzle
• Universal hinge applied, wide adaptability enabled

PRODUCT SPECIFICATIONS
• Dimension : 500 (L) x 383 (W) x 60 (H) mm
• Material : PP
* Only applicable for WOS8000, WH9010 & WH5085

TECHNICAL DRAWING
