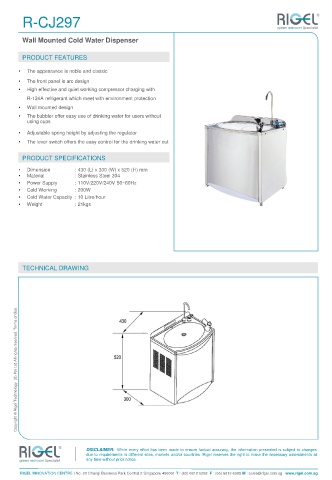

Page 155 - Rigel - Streamline Catalog Mobile
P. 155
R-CJ297
Wall Mounted Cold Water Dispenser
PRODUCT FEATURES
• The appearance is noble and classic
• The front panel is arc design
• High effective and quiet working compressor charging with
R-134A refrigerant which meet with environment protection
• Wall mounted design
• The bubbler offer easy use of drinking water for users without
using cups
of soap and eliminates backflow problem
• Adjustable spring height by adjusting the regulator
• The lever switch offers the easy control for the drinking water out
PRODUCT SPECIFICATIONS
• Dimension : 430 (L) x 300 (W) x 520 (H) mm
• Material : Stainless Steel 304
• Power Supply : 110V/220V/240V 50~60Hz
• Cold Working : 200W
• Cold Water Capacity : 10 Litre/hour
• Weight : 21kgs
TECHNICAL DRAWING
