FAN-PEDIA BEARINGS
Published by AEROVENT.COM
Aerovent FIXED & FLOATING BEARINGS
©2017

OVERVIEW
Two bearings support and locate a shaft
PLENUM FANS axially and radially in relation to the housing,
which is stationary. There is “fixed” side and a
“floating” side. The fixed side controls the shaft
axially. The floating side has more freedom of
movement (floating) to help compensate for
thermal expansion or contraction of shaft.

Guidelines for use
300 F and below
o
Ball Type – Use 2 fixed
Roller Type – (1) fixed; (1) floating
Split Roller Type - (1) fixed; (1) floating

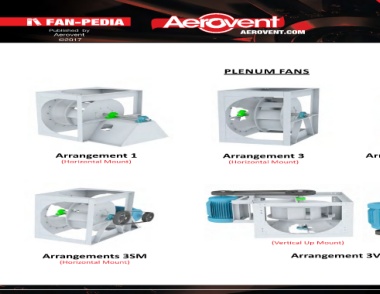

Arrangement 1 Arrangement 3 Arrangements 3HA / 3HS
(Horizontal Mount) (Horizontal Mount) (Horizontal Mount) 301 F and above
o
All Types – (1) fixed; (1) floating

FIXED BEARING FLOATING BEARING
Also Know As: Also Know As:
(Vertical Up Mount) (Vertical Down Mount) Non Expansion Bearing Expansion Bearing
Non-Locating Bearing
Arrangements 3SM Arrangement 3VA / 3VS
(Horizontal Mount)
