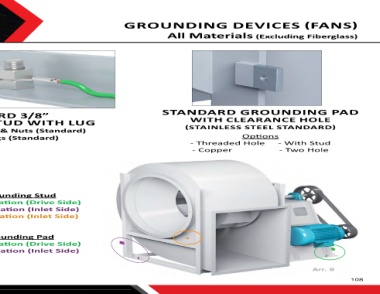

FAN-PEDIA GROUNDING DEVICES (FANS)
Published by AEROVENT.COM
Aerovent All Materials (Excluding Fiberglass)
©2017
One Hole Lug
(Standard)
Two Hole Lug
(Optional)
STANDARD 3/8”GROUNDING STANDARD 3/8” STANDARD GROUNDING PAD
WITH CLEARANCE HOLE
STUD (Stainless Steel Stud Standard) GROUNDING STUD WITH LUG (STAINLESS STEEL STANDARD)
Also Known As: Stainless Steel Stud & Nuts (Standard)
- Lug (commonly mistaken for grounding stud) Aluminum Lugs (Standard) Options
Lugs shown in photo on the right - Threaded Hole - With Stud
- Copper - Two Hole
Fan Grounding Stud
Standard Location (Drive Side)
Standard Location (Inlet Side)
Optional Location (Inlet Side)
Fan Grounding Pad
Standard Location (Drive Side)
Standard Location (Inlet Side)
Arr. 8 Arr. 9
