FAN-PEDIA ARRANGEMENTS
Published by AEROVENT.COM
Aerovent Plenum Fans
©2017
Cutaway view for showing bearing location. Cutaway view for showing bearing location.

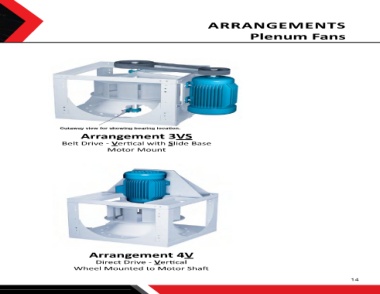

Arrangement 3VA Arrangement 3VS
Belt Drive - Vertical with Adjustable Belt Drive - Vertical with Slide Base
Motor Base Motor Mount
Arrangement 4 Arrangement 4V
Direct Drive - Horizontal Direct Drive - Vertical
Wheel Mounted to Motor Shaft Wheel Mounted to Motor Shaft
