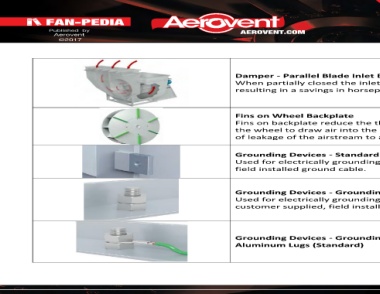

Damper - Parallel Blade Inlet Box Damper
When partially closed the inlet box damper pre-spins the air in the direction of wheel rotation,
resulting in a savings in horsepower at reduced loads.

Fins on Wheel Backplate
Fins on backplate reduce the thrust load on the bearings. Fins can create a negative pressure behind
the wheel to draw air into the fan through the shaft hole in the housing. Helps reduce the possibility
of leakage of the airstream to atmosphere.

Grounding Devices - Standard Grounding Pad with Clearance Hole (Stainless Steel Standard)
Used for electrically grounding the fan. Includes a threaded hole for attaching the customer supplied,
field installed ground cable.

Grounding Devices - Grounding Stud – 3/8” (Stainless Steel Stud Standard)
Used for electrically grounding the fan. Includes a stud welded to the pedestal foot for attaching the
customer supplied, field installed ground cable.

Grounding Devices - Grounding Stud with Lug – 3/8” Stainless Steel Stud & Nuts (Standard),
Aluminum Lugs (Standard)
