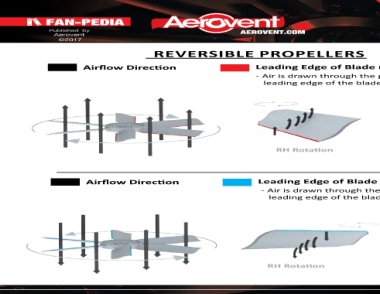

REVERSIBLE PROPELLERS AIRFLOW DIRECTION
Rotation is determined by viewing the propeller
Airflow Direction Leading Edge of Blade (Standard Flow) from the discharge side of the fan.

- Air is drawn through the propeller from the
leading edge of the blades.
STANDARD FLOW
Intake

Discharge

RH Rotation

Airflow Direction
RH Rotation air passes over Motor
then through Prop
(Airflow = MP)
aka: Hub on Discharge

Airflow Direction Leading Edge of Blade (Reverse Flow) REVERSE FLOW

- Air is drawn through the propeller from the
leading edge of the blades.
Discharge

Intake

RH Rotation

Airflow Direction
air passes through
RH Rotation Prop then over Motor
(Airflow = PM)
