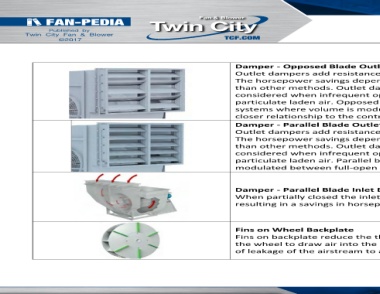

Damper - Opposed Blade Outlet Damper
Outlet dampers add resistance to the fan by shifting the operating point to the left of the rating point.
The horsepower savings depends on the relative position on the fan curve and is usually much less
than other methods. Outlet dampers are typically the least expensive option and should be
considered when infrequent operation at lesser capacity is desired or when handling hot, humid or
particulate laden air. Opposed blade dampers cost about 10% more and are recommended for
systems where volume is modulated over the entire range. Opposed blades reduce air volume in a
closer relationship to the control arm movement. Available to 750°F construction.
Damper - Parallel Blade Outlet Damper
Outlet dampers add resistance to the fan by shifting the operating point to the left of the rating point.
The horsepower savings depends on the relative position on the fan curve and is usually much less
than other methods. Outlet dampers are typically the least expensive option and should be
considered when infrequent operation at lesser capacity is desired or when handling hot, humid or
particulate laden air. Parallel blade dampers are recommended for systems where air volume is
modulated between full-open to about 75% of open. Available to 750°F construction.

Damper - Parallel Blade Inlet Box Damper
When partially closed the inlet box damper pre-spins the air in the direction of wheel rotation,
resulting in a savings in horsepower at reduced loads.

Fins on Wheel Backplate
Fins on backplate reduce the thrust load on the bearings. Fins can create a negative pressure behind
the wheel to draw air into the fan through the shaft hole in the housing. Helps reduce the possibility
of leakage of the airstream to atmosphere.
