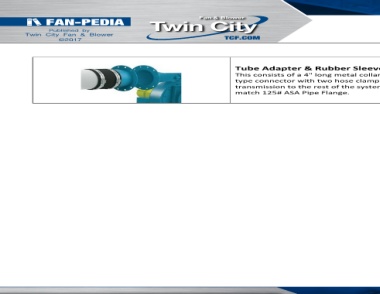

Tube Adapter & Rubber Sleeve w/ Clamps
This consists of a 4" long metal collar and flange which bolts to the blower discharge. A 6" long, 2-ply molded rubber slip-
type connector with two hose clamps connects the adapter to the pipe line and helps to isolate vibration and noise
transmission to the rest of the system. The connector is rated for pressures up to 5 psi and 180°F. Flange bolt patterns
match 125# ASA Pipe Flange.
