FAN-PEDIA WHEEL ROTATION,

Published by
Twin City Fan & Blower & DISCHARGES
©2017 TCF.COM

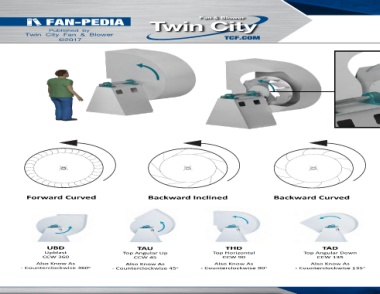

SWSI CENTRIFUGAL FANS

COUNTERCLOCKWISE (CCW)

ROTATION VIEW FROM DRIVE SIDE

Forward Curved Backward Inclined Backward Curved Airfoil Radial Bladed Radial Tip

UBD TAU THD TAD DBD BAD BHD BAU
Upblast Top Angular Up Top Horizontal Top Angular Down Downblast Bottom Angular Down Bottom Horizontal Bottom Angular Up
CCW 360 CCW 45 CCW 90 CCW 135 CCW 180 CCW 225 CCW 270 CCW 315
Also Know As Also Know As Also Know As Also Know As Also Know As Also Know As Also Know As Also Know As
- Counterclockwise 360 o - Counterclockwise 45 o - Counterclockwise 90 o - Counterclockwise 135 o - Counterclockwise 80 o - Counterclockwise 225 o - Counterclockwise 270 o - Counterclockwise 315 o
