FAN-PEDIA PROPELLERS

Published by
Twin City Fan & Blower OVERVIEW
©2017 TCF.COM

“TCTS” Propeller

Propeller Overview
• Available in 5 or 7 blades
• Propeller consists of die-formed stamped airfoil
shaped steel blades welded to a spun steel
central hub
• Blade settings range from 30 to 50 degrees
• Right hand rotation only
• Used on Arrangement 9 only
• Mild Steel (Standard Material)
FIXED PITCH PROPELLERS (CAST) • Available in 304SS or 316SS construction
SIZES 12” – 54” • Specialty coatings available

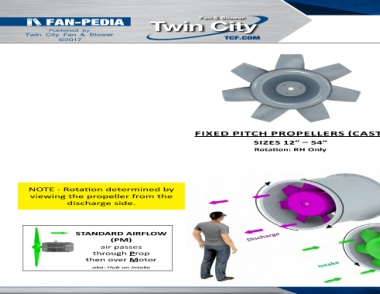

Rotation: RH Only Airflow Direction & Rotation
• Propeller can be reverse bored for opposite
airflow direction.

NOTE - Rotation determined by Intake
viewing the propeller from the
discharge side. Standard Bore
PM Airflow
Discharge

STANDARD AIRFLOW Discharge
(PM)
air passes
through Prop Reverse Bore
then over Motor MP Airflow
aka: Hub on Intake Intake
