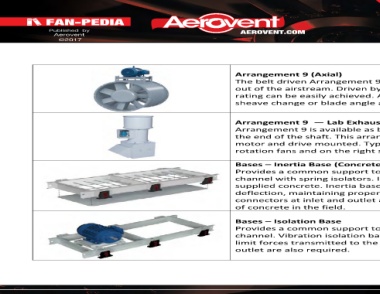

Arrangement 9 (Axial)
The belt driven Arrangement 9 is the perfect choice for applications which require the motor to be
out of the airstream. Driven by either a fixed or adjustable V-belt drive system, the exact point of
rating can be easily achieved. Any future change in rating can be accomplished through a simple
sheave change or blade angle adjustment.

Arrangement 9 — Lab Exhaust Fans
Arrangement 9 is available as belt driven only. The wheel is overhung on the shaft, i.e., mounted at
the end of the shaft. This arrangement permits the unit to ship as a complete assembly with the
motor and drive mounted. Typically, the motor is mounted on the left side of the pedestal for CW
rotation fans and on the right side for CCW rotation fans.

Bases – Inertia Base (Concrete Filled)
Provides a common support to fan, motor and drive including guards and utilize heavy duty structural
channel with spring isolators. Inertia bases incorporate reinforcing rods (rebar) and require customer
supplied concrete. Inertia bases are typically used on longer, direct drive fans to mitigate assembly
deflection, maintaining proper alignment between the motor, coupling, shaft and bearings. Flexible
connectors at inlet and outlet are required. Shown with optional bottom pan to allow for easier filling
of concrete in the field.

Bases – Isolation Base
Provides a common support to fan, motor and drive including guards and utilize heavy duty structural
channel. Vibration isolation bases require spring or rubber-in-shear type isolators that are designed to
limit forces transmitted to the support structure of an operating fan. Flexible connectors at inlet and
outlet are also required.
