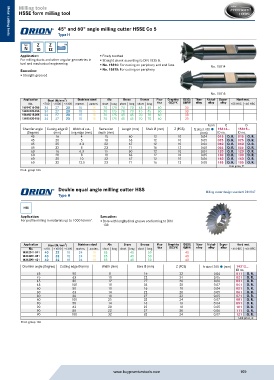

Page 109 - Buy Premium Tools ORION Catalogue

Milling tools
HSSE form milling tool

45° and 60° angle milling cutter HSSE Co 5
Type H
Metal cutting tools
Metal cutting tools
Typ Z Z HB
N 10 12
Application: ƒ Finely toothed
For milling ducts and other angular geometries in ƒ Straight shank according to DIN 1835 B.
tool and mechanical engineering. ƒ No. 15814: For cutting on periphery and end face No. 15814
Execution: ƒ No. 15815: For cutting on periphery
ƒ Straight-grooved

No. 15815
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
15814015-055 34 27 20 18 15 70 175 70 70 45 45 60 30
15814120-155 34 27 20 18 15 70 175 70 70 45 45 60 30
15815015-055 34 27 20 15 18 70 175 45 45 70 70 60 30
15815120-155 34 27 20 15 18 70 175 45 45 70 70 60 30
Form C D
Chamfer angle Cutting edge Ø Width of cut- Retraction Length (mm) Shaft Ø (mm) Z (PCS) fz steel 700 ˜ 15814... 15815...
(Degree) (mm) ting edge (mm) depth (mm) (mm) ID no. ID no.
45 16 4 15 60 12 10 0.04 015 O. R. 015 O. R.
45 20 5 18 63 12 10 0.05 025 O. R. 025 O. R.
45 25 6.3 22 67 12 10 0.06 040 O. R. 040 O. R.
45 32 8 23 71 16 12 0.08 055 O. R. 055 O. R.
60 16 6.3 15 60 12 10 0.04 120 O. R. 120 O. R.
60 20 8 18 63 12 10 0.05 130 O. R. 130 O. R.
60 25 10 22 67 12 10 0.06 140 O. R. 140 O. R.
60 32 12.5 23 71 16 12 0.08 155 O. R. 155 O. R.
Unit price, €
Prod. group 106

Double equal angle milling cutter HSS
Type H Milling cutter design standard DIN 847

HSS
Application: Execution:
For profile milling in materials up to 1000 N/mm . 2 ƒ Bore with longitudinal groove conforming to DIN
138

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
14312011-041 40 32 18 24 19 85 45 50 40
14312051-081 40 32 18 24 19 85 45 50 40
14312091-121 40 32 18 24 19 85 45 50 40
Chamfer angle (Degree) Cutting edge Ø (mm) Width (mm) Bore Ø (mm) Z (PCS) fz steel 700 ˜ (mm) 14312...
ID no.
45 50 8 16 22 0.04 011 O. R.
45 63 10 22 24 0.05 021 O. R.
45 80 12 27 26 0.06 031 O. R.
45 100 18 32 28 0.07 041 O. R.
60 50 10 16 18 0.04 051 O. R.
60 63 14 22 20 0.05 061 O. R.
60 80 18 27 22 0.05 071 O. R.
60 100 25 32 24 0.07 081 O. R.
90 50 14 16 16 0.04 091 O. R.
90 63 20 22 18 0.05 101 O. R.
90 80 22 27 20 0.06 111 O. R.
90 100 32 32 24 0.07 121 O. R.
Unit price, €
Prod. group 106
