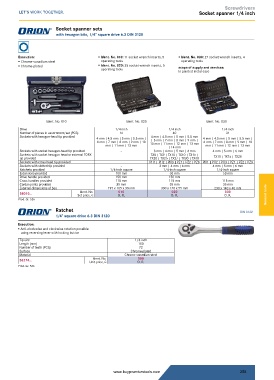

P. 258
Screwdrivers
Socket spanner 1/4 inch
Socket spanner sets
with hexagon bits, 1/4” square drive 6.3 DIN 3120
Execution: Ident. No. 010: 11 socket wrench inserts, 5 Ident. No. 030: 27 socket wrench inserts, 4
Chrome-vanadium steel operating tools operating tools
Chrome-plated Ident. No. 020: 35 socket wrench inserts, 5 scope of supply and services:
operating tools In painted metal case
Ident. No. 010 Ident. No. 020 Ident. No. 030
Drive 1/4 inch 1/4 inch 1/4 inch
Number of pieces in assortment/set (PCS) 16 40 31
Sockets with hexagon-head tip provided 4 mm | 4.5 mm | 5 mm | 5.5 mm | 4 mm | 4.5 mm | 5 mm | 5.5 mm 4 mm | 4.5 mm | 5 mm | 5.5 mm |
6 mm | 7 mm | 8 mm | 9 mm | 10 | 6 mm | 7 mm | 8 mm | 9 mm | 6 mm | 7 mm | 8 mm | 9 mm | 10
mm | 11 mm | 13 mm 10 mm | 11 mm | 12 mm | 13 mm mm | 11 mm | 12 mm | 13 mm
| 14 mm
Sockets with socket hexagon-head tip provided - 3 mm | 4 mm | 5 mm | 6 mm 4 mm | 5 mm | 6 mm
Sockets with socket hexagon head or external TORX - TX8 | TX9 | TX10 | TX10 | TX15 |
tip provided TX20 | TX25 | TX27 | TX30 | TX40 TX10 | TX15 | TX20
Sockets with cross-head tip provided - PH1 | PH2 | PH3 | PZ1 | PZ2 | PZ3 PH1 | PH2 | PH3 | PZ1 | PZ2 | PZ3
Sockets with slotted tip provided - 3 mm | 4 mm | 6 mm 4 mm | 5 mm | 6 mm
Ratchets provided 1/4-inch square 1/4-inch square 1/4-inch square
Extensions provided 100 mm 50 mm 50 mm
Drive handle provided 150 mm 150 mm -
Cross handles provided 115 mm 115 mm 115 mm
Cardan joints provided 35 mm 35 mm 35 mm
External dimensions of box 195 x 105 x 33 mm 330 x 170 x 55 mm 230 x 140 x 40 mm
Ident. No.
030
020
010
58010... Set price, € O. R. O. R. O. R. General tools
Prod. Gr. 526
Ratchet DIN 3122
1/4” square drive 6.3 DIN 3120
Execution:
Anti-clockwise and clockwise rotation possible
using reversing lever with locking button
Tip size 1/4 inch
Length (mm) 150
Number of teeth (PCS) 72
Surface Chrome-plated
Material Chrome-vanadium steel
Ident. No.
500
58274... Unit price, € O. R.
Prod. Gr. 526
