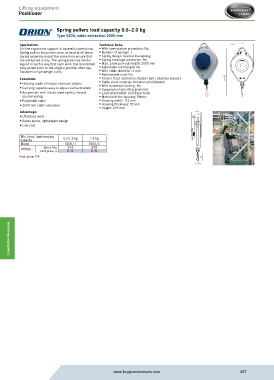

P. 287
Lifting equipment
Positioner
Spring pullers load capacity 0.5–2.0 kg
Type 5200, cable extraction 2000 mm
Application: Technical Data:
For the ergonomic support of assembly operations. With overrotation protection: No
Spring pullers keep tools close at hand at all times Number of springs: 1
during assembly and at the same time ensure that Spring design: Special mainspring
the workplace is tidy. The spring balances are de- Spring breakage protection: No
signed in such a way that each work tool is automati- Max. cable pull-out length: 2000 mm
cally pulled back to the original position after use. Adjustable cord length: No
Suitable for lightweight tools. Wire cable diameter: 2 mm
Replaceable cord: No
Execution: Cord in-feed restriction: Rubber ball | absorbs impacts
Housing made of impact-resistant plastic Cable drum material: Abrasion-proof plastic
Carrying capacity easy to adjust via hand wheel With automatic locking: No
Suspension type: Ring grommet
Suspension with robust steel eyelet, riveted Load attachment: Karabiner hook
special spring Material of the housing: Plastic
Polyamide cable Housing width: 112 mm
2000 mm cable extension Housing thickness: 55 mm
Height: 225 mm
Advantage:
Effortless work
Saves space, lightweight design
Low cost
Min./max. load-carrying
capacity 0.5-1.2 kg 1-2 kg
Model 5200/1 5200/2
020
010
Ident. No.
77005... Unit price, € O. R. O. R.
Prod. group 794
Workshop equipment
