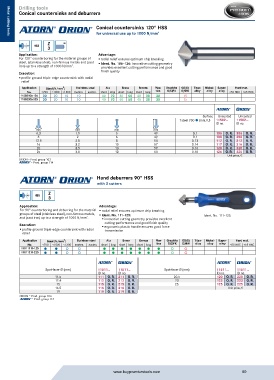

Page 60 - Buy Premium Tools ORION Catalogue

Drilling tools
Conical countersinks and deburrers

Conical countersinks 120° HSS
for universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
Z HA
HSS
3
Application: Advantage:
For 120° counterboring for the material groups of ƒ radial relief ensures optimum chip breaking
steel, (stainless steel), non-ferrous metals and (cast ƒ Ident. No. 106–126: innovative cutting geometry
iron) up to a strength of 1000 N/mm . 2 provides excellent cutting performance and good
Execution: finish quality
ƒ profile-ground triple-edge countersink with radial
relief
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11502106-126 30 20 10 10 40 70 60 50 40 30 30 15
11502306-325 30 20 10 10 40 70 60 50 40 30 30 15

Surface Uncoated Uncoated
f steel 700 ˜ (mm/U) 11502... 11502...
ID no. ID no.
mm mm mm mm
6.3 1.5 6 49 0.1 106 O. R. 306 O. R.
8 2 6 49 0.1 108 O. R. 308 O. R.
12.5 2.8 8 54 0.13 112 O. R. 312 O. R.
16 3.2 10 57 0.14 117 O. R. 316 O. R.
20 3.5 10 59 0.16 120 O. R. 320 O. R.
25 3.8 10 63 0.18 126 O. R. 325 O. R.
Unit price, €
ORION = Prod. group 103
a = Prod. group 114

Hand deburrers 90° HSS
with 3 cutters

Z
HSS
3
Application: Advantage:
For 90° counterboring and deburring for the material ƒ radial relief ensures optimum chip breaking
groups of steel (stainless steel), non-ferrous metals, ƒ Ident. No. 111–125: Ident. No. 111–125
and (cast iron) up to a strength of 1000 N/mm . 2 ƒ innovative cutting geometry provides excellent
cutting performance and good finish quality
Execution: ƒ ergonomic plastic handle ensures good force
ƒ profile-ground triple-edge countersink with radial transmission
relief
2
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11511111-125 ˜ ˜ š š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
11511211-225 ˜ ˜ š š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š

Spot-facer Ø (mm) 11511... 11511... Spot-facer Ø (mm) 11511... 11511...
ID no. ID no. ID no. ID no.
11.5 111 O. R. 211 O. R. 20.5 120 O. R. 220 O. R.
12.4 112 O. R. 212 O. R. 23 123 O. R. 223 O. R.
15 115 O. R. 215 O. R. 25 125 O. R. 225 O. R.
16.5 116 O. R. 216 O. R. Unit price, €
19 119 O. R. 219 O. R.
ORION = Prod. group 103
a = Prod. group 114
