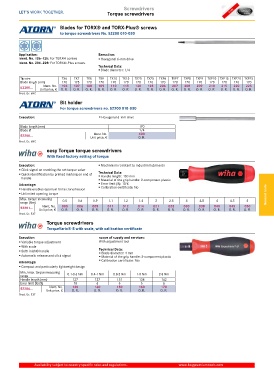

Page 353 - BPT - Electric Trade Catalog

Screwdrivers
Torque screwdrivers

Blades for TORX® and TORX-Plus® screws
to torque screwdrivers No. 52200 010-030

Application: Execution:
Ident. No. 106–125: For TORX® screws ƒ Hexagonal 6-mm drive
Ident. No. 206–225: For TORX®-Plus screws.
Technical Data:
ƒ Blade diameter: 1/4
Tip size TX6 TX7 TX8 TX9 TX10 TX15 TX20 TX25 TXP6 TXP7 TXP8 TXP9 TXP10 TXP15 TXP20 TXP25
Blade length (mm) 170 175 170 170 170 170 170 170 170 170 170 170 170 170 170 170
106
Ident. No.
109
107
108
110
210
209
208
225
220
215
125
120
115
207
206
52200... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 5HC
Bit holder
For torque screwdrivers no. 52200 010-030
Execution: ƒ Hexagonal 6-mm drive
Blade length (mm) 170
Blade Ø 1/4
Ident. No.
400
52200... Unit price, € O. R.
Prod. Gr. 5HC
easy Torque torque screwdrivers
With fixed factory setting of torque
Execution: ƒ Mechanism resistant to industrial lubricants
ƒ Click signal on reaching the set torque value
ƒ Quick identification by printed marking on end of Technical Data:
ƒ Handle length: 130 mm
handle ƒ Material of the grip handle: 2-component plastic
Advantage: ƒ Error limit (%): 10 %
ƒ Handle enables optimum force transmission ƒ Calibration certificate: No
ƒ Unlimited opening torque General tools
Max. torque measuring 0.5 0.6 0.9 1.1 1.2 1.4 2 2.5 3 3.8 4 4.5 5
range (Nm)
021
011
012
014
025
040
045
038
030
050
Ident. No.
006
009
52201... Unit price, € 005 O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
O. R.
Prod. Gr. 537
Torque screwdrivers
TorqueVario®-S with scale, with calibration certificate
Execution: scope of supply and services:
ƒ Variable torque adjustment With adjustment tool
ƒ With scale
ƒ SoftFinish® handle Technical Data:
ƒ Blade diameter: 4 mm
ƒ Automatic release and click signal ƒ Material of the grip handle: 2-component plastic
Advantage: ƒ Calibration certificate: Yes
ƒ Compact and particularly lightweight design
Min./max. torque measuring 0.1-0.6 Nm 0.4-1 Nm 0.8-2 Nm 1-5 Nm 2-8 Nm
range
Handle length (mm) 127 127 131 138 142
Error limit (%) (%) 10 6 6 6 6
130
140
160
150
Ident. No.
170
52206... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 537
Availability subject to country specific rules and regulations. www.buypremiumtools.com 353
