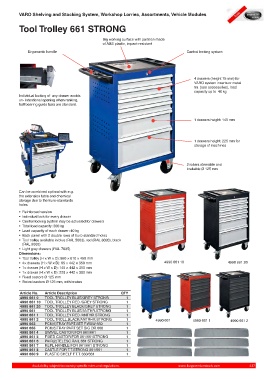

Page 417 - BPT - Electric Trade Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Tool Trolley 661 STRONG

Big working surface with partition made
of ABS plastic, impact-resistant
Ergonomic handle Central locking system

4 drawers (height 75 mm) for
VARO system inserts or metal
tra (see accessories), load
capacity up to 40 kg
Individual locking of any drawer avoids
un- intentional opening when ranking,
ball bearing guide bars are standard.

1 drawers height: 145 mm

1 drawers height: 225 mm for
storage of machines

2 rollers steerable and
brakable Ø 125 mm

Can be combined optimal with e.g.
the extension table and chemical
storage due to the Euro-standards
holes
• Reinforced version
• Individual lock for every drawer
• Central locking system may be activated for drawers
• Total load capacity: 300 kg
• Load capacity of each drawer: 40 kg
• Back panel with 2 double rows of Euro-standard holes
• Tool trolley available in blue (RAL 5003), red (RAL 3020), black
(RAL 9005)
• Light grey drawers (RAL 7035)
Dimensions:
• Tool trolley (H × W × D): 950 × 610 × 450 mm
• 4× drawers (H × W × D): 65 × 442 × 350 mm 4990 661 10 4990 661 20
• 1× drawer (H × W × D): 145 × 442 × 350 mm
• 1× drawer (H × W × D): 225 × 442 × 350 mm
• Fixed castors Ø 125 mm
• Swivel castors Ø 125 mm, with brakes

Article No. Article Description QTY
4990 661 0 TOOL TROLLEY BLUE/GREY STRONG 1
4990 661 10 TOOL TROLLEY RED /GREY STRONG 1
4990 661 20 TOOL TROLLEY BLACK/GREY STRONG 1
4990 661 TOOL TROLLEY BLUE/ANTHR.STRONG 1
4990 661 1 TOOL TROLLEY RED /ANTHR.STRONG 1
4990 661 2 TOOL TROLL.BLACK/ANTRHR.STRONG 1 4990 661 4990 661 1 4990 661 2
4990 663 PCK(6)TRAY PART.SET F.WSW 660 1
4990 665 PCK(6)TRAY PART.SET BIG DR.660 1
4990 861 4 SWIVEL CASTOR FOR 861/661 1
4990 861 5 FIXED CASTOR FOR 861/661STRONG 1
4990 661 6 PAIR(2)TELESC.RAIL 661 STRONG 1
4990 861 7 REPL.HANDLE FOR 861/661 STRONG 1
4990 861 8 CASTLE FOR T.T.STRONG 861/661 1
4990 660 9 PLASTIC SHELF F.T.T. 660/661 1

Availability subject to country specific rules and regulations. www.buypremiumtools.com 417
