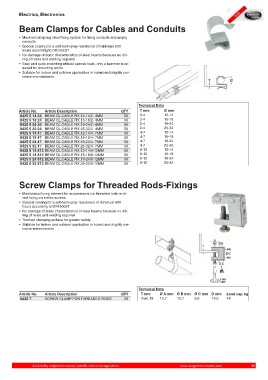

P. 46

Electrics, Electronics

         Beam Clamps for Cables and Conduits


         • Mechanical spring steel fixing system for fixing conduits and empty
           conduits
         • Special coating for a salt-test-spray resistance of minimum 600
           hours according to DIN 50021
         • No damage of static characteristics of steel beams because no dril-
           ling of holes and welding required
         • Easy and quick mounting without special tools, only a hammer is re-
           quired for mounting works
         • Suitable for indoor and outdoor application in humid and slightly cor-
           rosive environments






                                                               Technical Data
         Article No.  Article Description              QTY     T mm       Ø mm
          8425 5 14 24  BEAM CL.CABLE FIX.12-14/2- 4MM  50     2-4        12-14
          8425 5 18 24  BEAM CL.CABLE FIX.15-18/2- 4MM  50     2-4        15-18
          8425 5 24 24  BEAM CL.CABLE FIX.19-24/2- 4MM  50     2-4        19-24
          8425 5 32 24  BEAM CL.CABLE FIX.25-32/2- 4MM  50     2-4        25-32
          8425 5 14 47  BEAM CL.CABLE FIX.12-14/4- 7MM  50     4-7        12-14
          8425 5 18 47  BEAM CL.CABLE FIX.15-18/4- 7MM  50     4-7        15-18
          8425 5 24 47  BEAM CL.CABLE FIX.19-24/4- 7MM  50     4-7        19-24
          8425 5 32 47  BEAM CL.CABLE FIX.25-32/4- 7MM  50     4-7        25-32
          8425 5 14 812  BEAM CL.CABLE FIX.12-14/8-12MM  50    8-12       12-14
          8425 5 18 812  BEAM CL.CABLE FIX.15-18/8-12MM  50    8-12       15-18
          8425 5 24 812  BEAM CL.CABLE FIX.19-24/8-12MM  50    8-12       19-24
          8425 5 32 812  BEAM CL.CABLE FIX.25-32/8-12MM  50    8-12       25-32



          Screw Clamps for Threaded Rods-Fixings


          • Mechanical fixing element for suspensions via threaded rods or di-
           rect fixing via metric screws
          • Special coating for a salt-test-spray resistance of minimum 600
           hours according to DIN 50021
          • No damage of static characteristics of steel beams because no dril-
           ling of holes and welding required
          • Toothed clamping surface for greater safety
          • Suitable for indoor and outdoor application in humid and slightly cor-
           rosive environments















                                                               Technical Data
          Article No.  Article Description             QTY      T mm    Ø A mm Ø B mm  Ø C mm D mm    Load cap. kg
          8425 7     SCREW CLAMP FOR THREADED RODS      25      max. 18  10.7   10.7   6.5     19.5   45
