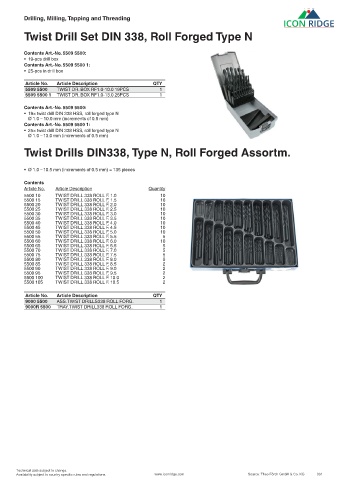

Page 331 - Icon Ridge Maintenance & Service Catalog

Drilling, Milling, Tapping and Threading

Twist Drill Set DIN 338, Roll Forged Type N

Contents Art.-No. 5509 5500:
• 19-pcs drill box
Contents Art.-No. 5509 5500 1:
• 25-pcs in drill box

Article No. Article Description QTY
5509 5500 TWIST DR. BOX RF1.0-10.0 19PCS 1
5509 5500 1 TWIST DR. BOX RF1.0-13.0 25PCS 1

Contents Art.-No. 5509 5500:
• 19× twist drill DIN 338 HSS, roll forged type N
Ø 1.0 – 10.0 mm (increments of 0.5 mm)
Contents Art.-No. 5509 5500 1:
• 25× twist drill DIN 338 HSS, roll forged type N
Ø 1.0 – 13.0 mm (increments of 0.5 mm)

Twist Drills DIN338, Type N, Roll Forged Assortm.

• Ø 1.0 – 10.5 mm (increments of 0.5 mm) = 135 pieces

Contents
Article No. Article Description Quantity
5500 10 TWIST DRILL 338 ROLL F. 1.0 10
5500 15 TWIST DRILL 338 ROLL F. 1.5 10
5500 20 TWIST DRILL 338 ROLL F. 2.0 10
5500 25 TWIST DRILL 338 ROLL F. 2.5 10
5500 30 TWIST DRILL 338 ROLL F. 3.0 10
5500 35 TWIST DRILL 338 ROLL F. 3.5 10
5500 40 TWIST DRILL 338 ROLL F. 4.0 10
5500 45 TWIST DRILL 338 ROLL F. 4.5 10
5500 50 TWIST DRILL 338 ROLL F. 5.0 10
5500 55 TWIST DRILL 338 ROLL F. 5.5 5
5500 60 TWIST DRILL 338 ROLL F. 6.0 10
5500 65 TWIST DRILL 338 ROLL F. 6.5 5
5500 70 TWIST DRILL 338 ROLL F. 7.0 5
5500 75 TWIST DRILL 338 ROLL F. 7.5 5
5500 80 TWIST DRILL 338 ROLL F. 8.0 5
5500 85 TWIST DRILL 338 ROLL F. 8.5 2
5500 90 TWIST DRILL 338 ROLL F. 9.0 2
5500 95 TWIST DRILL 338 ROLL F. 9.5 2
5500 100 TWIST DRILL 338 ROLL F. 10.0 2
5500 105 TWIST DRILL 338 ROLL F. 10.5 2
Article No. Article Description QTY
9000 5500 ASS.TWIST DRILLS338 ROLL FORG. 1
9000R 5500 TRAY.TWIST DRILL338 ROLL FORG. 1

Technical data subject to change.
