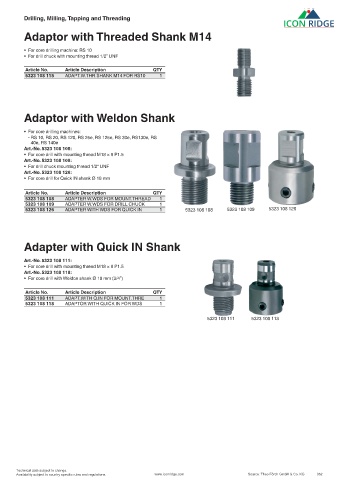

Drilling, Milling, Tapping and Threading

Adaptor with Threaded Shank M14

• For core drilling machine: RS 10
• For drill chuck with mounting thread 1/2” UNF

Article No. Article Description QTY
5323 108 115 ADAPT.W.THR.SHANK M14 FOR RS10 1

Adaptor with Weldon Shank

• For core drilling machines:
- RS 10, RS 20, RS 120, RS 25e, RS 125e, RS 30e, RS130e, RS
40e, RS 140e
Art.-No. 5323 108 108:
• For core drill with mounting thread M18 × 6 P1.5
Art.-No. 5323 108 109:
• For drill chuck mounting thread 1/2“ UNF
Art.-No. 5323 108 126:
• For core drill for Quick IN shank Ø 18 mm

Article No. Article Description QTY
5323 108 108 ADAPTER W.WDS FOR MOUNT.THREAD 1
5323 108 109 ADAPTER W.WDS FOR DRILL CHUCK 1
5323 108 126 ADAPTER WITH WDS FOR QUICK IN 1 5323 108 108 5323 108 109 5323 108 126

Adapter with Quick IN Shank

Art.-No. 5323 108 111:
• For core drill with mounting thread M18 × 6 P1.5
Art.-No. 5323 108 118:
• For core drill with Weldon shank Ø 19 mm (3/4”)

Article No. Article Description QTY
5323 108 111 ADAPT.WITH Q.IN FOR MOUNT.THRE 1
5323 108 118 ADAPTOR WITH QUICK IN FOR WDS 1

5323 108 111 5323 108 118
