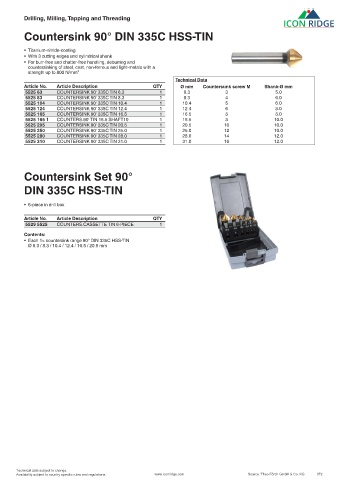

Page 372 - Icon Ridge Maintenance & Service Catalog

Drilling, Milling, Tapping and Threading

Countersink 90° DIN 335C HSS-TIN

• Titanium-nitride-coating
• With 3 cutting edges und cylindrical shank
• For burr-free and chatter-free handling, deburring and
countersinking of steel, cast, non-ferrous and light-metals with a
strength up to 800 N/mm²
Technical Data
Article No. Article Description QTY Ø mm Countersunk screw M Shank-Ø mm
5525 63 COUNTERSINK 90' 335C TIN 6.3 1 6.3 3 5.0
5525 83 COUNTERSINK 90' 335C TIN 8.3 1 8.3 4 6.0
5525 104 COUNTERSINK 90' 335C TIN 10.4 1 10.4 5 6.0
5525 124 COUNTERSINK 90' 335C TIN 12.4 1 12.4 6 8.0
5525 165 COUNTERSINK 90' 335C TIN 16.5 1 16.5 8 8.0
5525 165 1 COUNTERS.90' TIN 16.5 SHAFT10 1 16.5 8 10.0
5525 205 COUNTERSINK 90' 335C TIN 20.5 1 20.5 10 10.0
5525 250 COUNTERSINK 90' 335C TIN 25.0 1 25.0 12 10.0
5525 280 COUNTERSINK 90' 335C TIN 28.0 1 28.0 14 12.0
5525 310 COUNTERSINK 90' 335C TIN 31.0 1 31.0 16 12.0

Countersink Set 90°

DIN 335C HSS-TIN

• 6-piece in drill box

Article No. Article Description QTY
5529 5525 COUNTERS.CASSETTE TIN 6-PIECE 1
Contents:
• Each 1× countersink range 90° DIN 335C HSS-TIN
Ø 6.3 / 8.3 / 10.4 / 12.4 / 16.5 / 20.5 mm

Technical data subject to change.
