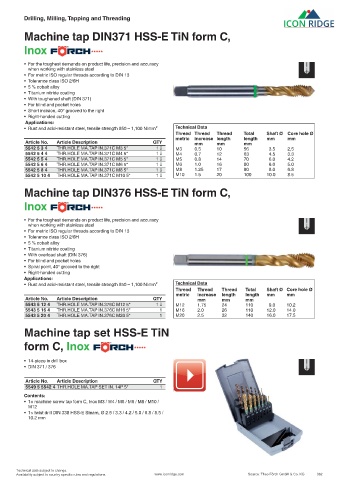

Page 382 - Icon Ridge Maintenance & Service Catalog

Drilling, Milling, Tapping and Threading

Machine tap DIN371 HSS-E TiN form C,

Inox

• For the toughest demands on product life, precision and accuracy
when working with stainless steel
• For metric ISO regular threads according to DIN 13
• Tolerance class ISO 2/6H
• 5 % cobalt alloy
• Titanium nitride coating
• With toughened shaft (DIN 371)
• For blind and pocket holes
• Short incision, 40° grooved to the right
• Right-handed cutting
Applications:
• Rust and acid-resistant steel, tensile strength 850 – 1,100 N/mm² Technical Data
Thread Thread Thread Total Shaft Ø Core hole Ø
metric increase length length mm mm
Article No. Article Description QTY mm mm mm
5542 5 3 4 THR.HOLE MA.TAP IN.371C M3 5* 1 ü M3 0.5 10 56 3.5 2,5
5542 5 4 4 THR.HOLE MA.TAP IN.371C M4 5* 1 ü M4 0.7 12 63 4.5 3.3
5542 5 5 4 THR.HOLE MA.TAP IN.371C M5 5* 1 ü M5 0.8 14 70 6.0 4.2
5542 5 6 4 THR.HOLE MA.TAP IN.371C M6 5* 1 ü M6 1.0 16 80 6.0 5.0
5542 5 8 4 THR.HOLE MA.TAP IN.371C M8 5* 1 ü M8 1.25 17 90 8.0 6.8
5542 5 10 4 THR.HOLE MA.TAP IN.371C M10 5* 1 ü M10 1.5 20 100 10.0 8.5

Machine tap DIN376 HSS-E TiN form C,

Inox

• For the toughest demands on product life, precision and accuracy
when working with stainless steel
• For metric ISO regular threads according to DIN 13
• Tolerance class ISO 2/6H
• 5 % cobalt alloy
• Titanium nitride coating
• With overload shaft (DIN 376)
• For blind and pocket holes
• Spiral point, 40° grooved to the right
• Right-handed cutting
Applications:
• Rust and acid-resistant steel, tensile strength 850 – 1,100 N/mm² Technical Data
Thread Thread Thread Total Shaft Ø Core hole Ø
metric increase length length mm mm
Article No. Article Description QTY mm mm mm
5543 5 12 4 THR.HOLE MA.TAP IN.376C M12 5* 1 ü M12 1.75 24 110 9.0 10.2
5543 5 16 4 THR.HOLE MA.TAP IN.376C M16 5* 1 M16 2.0 26 110 12.0 14.0
5543 5 20 4 THR.HOLE MA.TAP IN.376C M20 5* 1 M20 2.5 32 140 16.0 17.5

Machine tap set HSS-E TiN

form C, Inox

• 14-piece in drill box
• DIN 371 / 376

Article No. Article Description QTY
5549 5 5542 4 THR.HOLE MA.TAP SET IN. 14P 5* 1
Contents:
• 1× machine screw tap form C, Inox M3 / M4 / M5 / M6 / M8 / M10 /
M12
• 1× twist drill DIN 338 HSS-E Steam, Ø 2.5 / 3.3 / 4.2 / 5.0 / 6.8 / 8.5 /
10.2 mm

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 382
