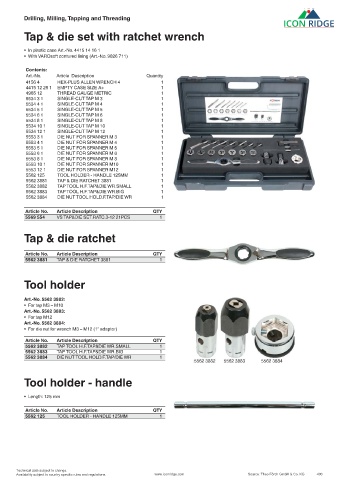

Page 400 - Icon Ridge Maintenance & Service Catalog

Drilling, Milling, Tapping and Threading

Tap & die set with ratchet wrench

• In plastic case Art.-No. 4415 14 16 1
• With VAROsoft contured lining (Art.-No. 9026 711)

Contents:
Art.-No. Article Description Quantity
4156 4 HEX-PLUS ALLEN WRENCH 4 1
4415 12 25 1 EMPTY CASE SIZE A+ 1
4965 12 THREAD GAUGE METRIC 1
5534 3 1 SINGLE-CUT TAP M 3 1
5534 4 1 SINGLE-CUT TAP M 4 1
5534 5 1 SINGLE-CUT TAP M 5 1
5534 6 1 SINGLE-CUT TAP M 6 1
5534 8 1 SINGLE-CUT TAP M 8 1
5534 10 1 SINGLE-CUT TAP M 10 1
5534 12 1 SINGLE-CUT TAP M 12 1
5553 3 1 DIE NUT FOR SPANNER M 3 1
5553 4 1 DIE NUT FOR SPANNER M 4 1
5553 5 1 DIE NUT FOR SPANNER M 5 1
5553 6 1 DIE NUT FOR SPANNER M 6 1
5553 8 1 DIE NUT FOR SPANNER M 8 1
5553 10 1 DIE NUT FOR SPANNER M10 1
5553 12 1 DIE NUT FOR SPANNER M12 1
5562 125 TOOL HOLDER - HANDLE 125MM 1
5562 3881 TAP & DIE RATCHET 3881 1
5562 3882 TAP TOOL H.F.TAP&DIE WR.SMALL 1
5562 3883 TAP TOOL H.F.TAP&DIE WR.BIG 1
5562 3884 DIE NUT TOOL HOLD.F.TAP/DIE WR 1

Article No. Article Description QTY
5569 554 VS TAP&DIE SET.RATC.3-12 21PCS 1

Tap & die ratchet

Article No. Article Description QTY
5562 3881 TAP & DIE RATCHET 3881 1

Tool holder

Art.-No. 5562 3882:
• For tap M3 – M10
Art.-No. 5562 3883:
• For tap M12
Art.-No. 5562 3884:
• For die nut for wrench M3 – M12 (1“ adaptor)
Article No. Article Description QTY
5562 3882 TAP TOOL H.F.TAP&DIE WR.SMALL 1
5562 3883 TAP TOOL H.F.TAP&DIE WR.BIG 1
5562 3884 DIE NUT TOOL HOLD.F.TAP/DIE WR 1
5562 3882 5562 3883 5562 3884

Tool holder - handle

• Length: 125 mm

Article No. Article Description QTY
5562 125 TOOL HOLDER - HANDLE 125MM 1

Technical data subject to change.
