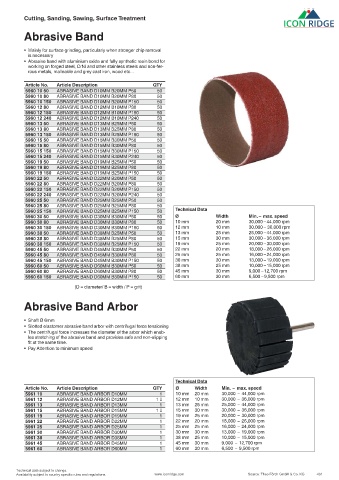

Page 431 - Icon Ridge Maintenance & Service Catalog

Cutting, Sanding, Sawing, Surface Treatment

Abrasive Band

• Mainly for surface grinding, particularly when stronger chip removal
is necessary
• Abrasive band with aluminium oxide and fully synthetic resin bond for
working on forged steel, CrNi and other stainless steels and non-fer-
rous metals, malleable and grey cast iron, wood etc...

Article No. Article Description QTY
5960 10 50 ABRASIVE BAND D10MM B20MM P50 50
5960 10 80 ABRASIVE BAND D10MM B20MM P80 50
5960 10 150 ABRASIVE BAND D10MM B20MM P150 50
5960 12 80 ABRASIVE BAND D12MM B10MM P80 50
5960 12 150 ABRASIVE BAND D12MM B10MM P150 50
5960 12 240 ABRASIVE BAND D12MM B10MM P240 50
5960 13 50 ABRASIVE BAND D13MM B25MM P50 50
5960 13 80 ABRASIVE BAND D13MM B25MM P80 50
5960 13 150 ABRASIVE BAND D13MM B25MM P150 50
5960 15 50 ABRASIVE BAND D15MM B30MM P50 50
5960 15 80 ABRASIVE BAND D15MM B30MM P80 50
5960 15 150 ABRASIVE BAND D15MM B30MM P150 50
5960 15 240 ABRASIVE BAND D15MM B30MM P240 50
5960 19 50 ABRASIVE BAND D19MM B25MM P50 50
5960 19 80 ABRASIVE BAND D19MM B25MM P80 50
5960 19 150 ABRASIVE BAND D19MM B25MM P150 50
5960 22 50 ABRASIVE BAND D22MM B20MM P50 50
5960 22 80 ABRASIVE BAND D22MM B20MM P80 50
5960 22 150 ABRASIVE BAND D22MM B20MM P150 50
5960 22 240 ABRASIVE BAND D22MM B20MM P240 50
5960 25 50 ABRASIVE BAND D25MM B25MM P50 50
5960 25 80 ABRASIVE BAND D25MM B25MM P80 50
5960 25 150 ABRASIVE BAND D25MM B25MM P150 50 Technical Data
5960 30 50 ABRASIVE BAND D30MM B30MM P50 50 Ø Width Min. – max. speed
5960 30 80 ABRASIVE BAND D30MM B30MM P80 50 10 mm 20 mm 30,000 – 44,000 rpm
5960 30 150 ABRASIVE BAND D30MM B30MM P150 50 12 mm 10 mm 30,000 – 36,000 rpm
5960 38 50 ABRASIVE BAND D38MM B25MM P50 50 13 mm 25 mm 25,000 – 44,000 rpm
5960 38 80 ABRASIVE BAND D38MM B25MM P80 50 15 mm 30 mm 30,000 – 36,000 rpm
5960 38 150 ABRASIVE BAND D38MM B25MM P150 50 19 mm 25 mm 20,000 – 30,000 rpm
5960 45 50 ABRASIVE BAND D45MM B30MM P50 50 22 mm 20 mm 18,000 – 26,000 rpm
5960 45 80 ABRASIVE BAND D45MM B30MM P80 50 25 mm 25 mm 16,000 – 24,000 rpm
5960 45 150 ABRASIVE BAND D45MM B30MM P150 50 30 mm 30 mm 13,000 – 19,000 rpm
5960 60 50 ABRASIVE BAND D60MM B30MM P50 50 38 mm 25 mm 10,000 – 15,000 rpm
5960 60 80 ABRASIVE BAND D60MM B30MM P80 50 45 mm 30 mm 9,000 – 12,700 rpm
5960 60 150 ABRASIVE BAND D60MM B30MM P150 50 60 mm 30 mm 6,500 – 9,500 rpm
(D = diameter/ B = width / P = grit)

Abrasive Band Arbor

• Shaft Ø 6mm
• Slotted elastomer abrasive band arbor with centrifugal force tensioning
• The centrifugal force increases the diameter of the arbor which enab-
les stretching of the abrasive band and provides safe and non-slipping
fit at the same time.
• Pay Attention to minimum speed

Technical Data
Article No. Article Description QTY Ø Width Min. – max. speed
5961 10 ABRASIVE BAND ARBOR D10MM 1 10 mm 20 mm 30,000 – 44,000 rpm
5961 12 ABRASIVE BAND ARBOR D12MM 1 ü 12 mm 10 mm 30,000 – 36,000 rpm
5961 13 ABRASIVE BAND ARBOR D13MM 1 13 mm 25 mm 25,000 – 44,000 rpm
5961 15 ABRASIVE BAND ARBOR D15MM 1 ü 15 mm 30 mm 30,000 – 36,000 rpm
5961 19 ABRASIVE BAND ARBOR D19MM 1 19 mm 25 mm 20,000 – 30,000 rpm
5961 22 ABRASIVE BAND ARBOR D22MM 1 22 mm 20 mm 18,000 – 26,000 rpm
5961 25 ABRASIVE BAND ARBOR D25MM 1 25 mm 25 mm 16,000 – 24,000 rpm
5961 30 ABRASIVE BAND ARBOR D30MM 1 30 mm 30 mm 13,000 – 19,000 rpm
5961 38 ABRASIVE BAND ARBOR D38MM 1 38 mm 25 mm 10,000 – 15,000 rpm
5961 45 ABRASIVE BAND ARBOR D45MM 1 45 mm 30 mm 9,000 – 12,700 rpm
5961 60 ABRASIVE BAND ARBOR D60MM 1 60 mm 30 mm 6,500 – 9,500 rpm

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 431
