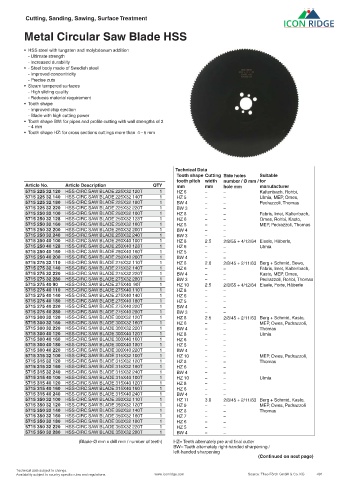

Page 491 - Icon Ridge Maintenance & Service Catalog

Cutting, Sanding, Sawing, Surface Treatment

Metal Circular Saw Blade HSS

• HSS steel with tungsten and molybdenum addition
- Ultimate strength
- Increased durability
• - Steel body made of Swedish steel
- Improved concentricity
- Precise cuts
• Steam tempered surfaces
- High sliding quality
- Reduces material requirement
• Tooth shape
- Improved chip ejection
- Blade with high cutting power
• Tooth shape BW: for pipes and profile cutting with wall strengths of 3
– 4 mm
• Tooth shape HZ: for cross sections cuttings more than 4 – 5 mm

Technical Data
Tooth shape Cutting Side holes Suitable
tooth pitch width number / Ø mm / for
Article No. Article Description QTY mm mm hole mm manufacturer
5715 225 32 120 HSS-CIRC.SAW BLADE 225X32 120T 1 HZ 6 – – Kaltenbach, Rohbi,
5715 225 32 140 HSS-CIRC.SAW BLADE 225X32 140T 1 HZ 5 – – Ulmia, MEP, Omes,
5715 225 32 180 HSS-CIRC.SAW BLADE 225X32 180T 1 BW 4 – – Pedrazzoli, Thomas
5715 225 32 220 HSS-CIRC.SAW BLADE 225X32 220T 1 BW 3 – –
5715 250 32 100 HSS-CIRC.SAW BLADE 250X32 100T 1 HZ 8 – – Fabris, Imet, Kaltenbach,
5715 250 32 128 HSS-CIRC.SAW BLADE 250X32 128T 1 HZ 6 – – Omes, Rohbi, Kasto,
5715 250 32 160 HSS-CIRC.SAW BLADE 250X32 160T 1 HZ 5 – – MEP, Pedrazzoli, Thomas
5715 250 32 200 HSS-CIRC.SAW BLADE 250X32 200T 1 BW 4 – –
5715 250 32 240 HSS-CIRC.SAW BLADE 250X32 240T 1 BW 3 – –
5715 250 40 100 HSS-CIRC.SAW BLADE 250X40 100T 1 HZ 8 2.5 2/8/55 + 4/12/64 Eisele, Häberle,
5715 250 40 128 HSS-CIRC.SAW BLADE 250X40 128T 1 HZ 6 – – Ulmia
5715 250 40 160 HSS-CIRC.SAW BLADE 250X40 160T 1 HZ 5 – –
5715 250 40 200 HSS-CIRC.SAW BLADE 250X40 200T 1 BW 4 – –
5715 275 32 110 HSS-CIRC.SAW BLADE 275X32 110T 1 HZ 8 2.0 2/8/45 + 2/11/63 Berg + Schmid, Bewo,
5715 275 32 140 HSS-CIRC.SAW BLADE 275X32 140T 1 HZ 6 – – Fabris, Imet, Kaltenbach,
5715 275 32 220 HSS-CIRC.SAW BLADE 275X32 220T 1 BW 4 – – Kasto, MEP, Omes,
5715 275 32 280 HSS-CIRC.SAW BLADE 275X32 280T 1 BW 3 – – Pedrazzoli, Rohbi, Thomas
5715 275 40 90 HSS-CIRC.SAW BLADE 275X40 90T 1 HZ 10 2.5 2/8/55 + 4/12/64 Eisele, Forte, Häberle
5715 275 40 110 HSS-CIRC.SAW BLADE 275X40 110T 1 HZ 8 – –
5715 275 40 140 HSS-CIRC.SAW BLADE 275X40 140T 1 HZ 6 – –
5715 275 40 180 HSS-CIRC.SAW BLADE 275X40 180T 1 HZ 5 – –
5715 275 40 220 HSS-CIRC.SAW BLADE 275X40 220T 1 BW 4 – –
5715 275 40 280 HSS-CIRC.SAW BLADE 275X40 280T 1 BW 3 – –
5715 300 32 120 HSS-CIRC.SAW BLADE 300X32 120T 1 HZ 8 2.5 2/8/45 + 2/11/63 Berg + Schmid, Kasto,
5715 300 32 160 HSS-CIRC.SAW BLADE 300X32 160T 1 HZ 6 – – MEP, Owes, Pedrazzoli,
5715 300 32 220 HSS-CIRC.SAW BLADE 300X32 220T 1 BW 4 – – Thomas
5715 300 40 120 HSS-CIRC.SAW BLADE 300X40 120T 1 HZ 8 – – Ulmia
5715 300 40 160 HSS-CIRC.SAW BLADE 300X40 160T 1 HZ 6 – –
5715 300 40 180 HSS-CIRC.SAW BLADE 300X40 180T 1 HZ 5 – –
5715 300 40 220 HSS-CIRC.SAW BLADE 300X40 220T 1 BW 4 – –
5715 315 32 100 HSS-CIRC.SAW BLADE 315X32 100T 1 HZ 10 – – MEP, Owes, Pedrazzoli,
5715 315 32 120 HSS-CIRC.SAW BLADE 315X32 120T 1 HZ 8 – – Thomas
5715 315 32 160 HSS-CIRC.SAW BLADE 315X32 160T 1 HZ 6 – –
5715 315 32 240 HSS-CIRC.SAW BLADE 315X32 240T 1 BW 4 – –
5715 315 40 100 HSS-CIRC.SAW BLADE 315X40 100T 1 HZ 10 – – Ulmia
5715 315 40 120 HSS-CIRC.SAW BLADE 315X40 120T 1 HZ 8 – –
5715 315 40 160 HSS-CIRC.SAW BLADE 315X40 160T 1 HZ 6 – –
5715 315 40 240 HSS-CIRC.SAW BLADE 315X40 240T 1 BW 4 – –
5715 350 32 100 HSS-CIRC.SAW BLADE 350X32 110T 1 HZ 11 3.0 2/8/45 + 2/11/63 Berg + Schmid, Kasto,
5715 350 32 120 HSS-CIRC.SAW BLADE 350X32 120T 1 HZ 9 – – MEP, Owes, Pedrazzoli
5715 350 32 140 HSS-CIRC.SAW BLADE 350X32 140T 1 HZ 8 – – Thomas
5715 350 32 160 HSS-CIRC.SAW BLADE 350X32 160T 1 HZ 7 – –
5715 350 32 180 HSS-CIRC.SAW BLADE 350X32 180T 1 HZ 6 – –
5715 350 32 220 HSS-CIRC.SAW BLADE 350X32 220T 1 HZ 5 – –
5715 350 32 280 HSS-CIRC.SAW BLADE 350X32 280T 1 BW 4 – –
(Blade-Ø mm x drill mm / number of teeth) HZ= Teeth alternately pre and final cutter
BW= Teeth alternately right-handed sharpening /
left-handed sharpening
(Continued on next page)
