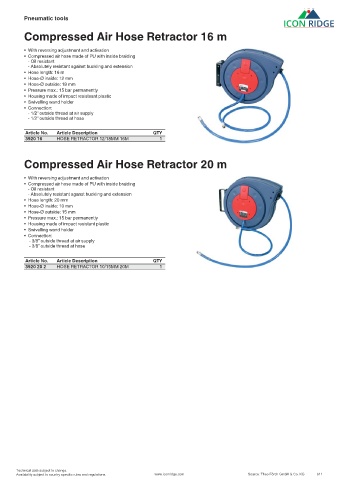

Page 611 - Icon Ridge Maintenance & Service Catalog

Pneumatic tools

Compressed Air Hose Retractor 16 m

• With reversing adjustment and activation
• Compressed air hose made of PU with inside braiding
- Oil resistant
- Absolutely resistant against buckling and extension
• Hose length: 16 m
• Hose-Ø inside: 12 mm
• Hose-Ø outside: 18 mm
• Pressure max.: 15 bar permanently
• Housing made of impact resistsant plastic
• Swivelling wand holder
• Connection:
- 1/2” outside thread at air supply
- 1/2” outside thread at hose

Article No. Article Description QTY
3920 16 HOSE RETRACTOR 12/18MM 16M 1

Compressed Air Hose Retractor 20 m

• With reversing adjustment and activation
• Compressed air hose made of PU with inside braiding
- Oil resistant
- Absolutely resistant aganst buckling and extension
• Hose length: 20 mm
• Hose-Ø inside: 10 mm
• Hose-Ø outside: 15 mm
• Pressure max.: 15 bar permanently
• Housing made of impact resistant plastic
• Swivelling wand holder
• Connection:
- 3/8” outside thread at air supply
- 3/8” outside thread at hose

Article No. Article Description QTY
3920 20 2 HOSE RETRACTOR 10/15MM 20M 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 611
