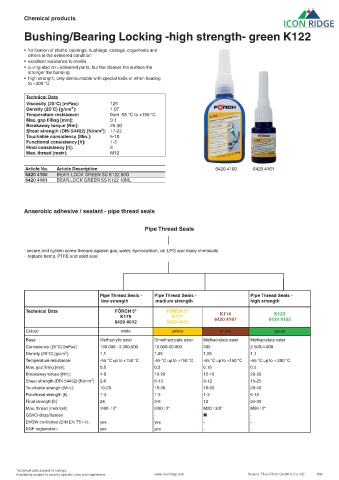

Page 802 - Icon Ridge Maintenance & Service Catalog

Chemical products

Bushing/Bearing Locking -high strength- green K122

• for fixation of shafts, bearings, bushings, casings, cogwheels and
others in the delivered condition
• excellent resistance to media
• curing also on uncleaned parts, but the cleaner the surface the
stronger the bonding
• high strength, only demountable with special tools or when heating
to +300 °C

Technical Data
Viscosity (25°C) [mPas]: 125
Density (25°C) [g/cm³]: 1.07
Temperature resistance: from -55 °C to +150 °C
Max. gap filling [mm]: 0.1
Breakaway torque [Nm]: 25-30
Shear strength (DIN 54452) [N/mm²]: 17-22
Touchable consistency [Min.]: 5-10
Functional consistency [h]: 1-3
Final consistency [h]: 6
Max. thread [metr]: M12

Article No. Article Description 6420 4160 6420 4161
6420 4160 BEAR. LOCK GREEN SS K122 50G
6420 4161 BEAR.LOCK GREEN SS K122 10ML

Anaerobic adhesive / sealant - pipe thread seals

Pipe Thread Seals

- secure and tighten screw threads against gas, water, hydrocarbon, oil, LPG and many chemicals
- replace hemp, PTFE and solid seal

Pipe Thread Seals - Pipe Thread Seals - Pipe Thread Seals -
low strength medium strength high strength
Technical Data FÖRCH 5* FÖRCH 5* K114 K123
K178 K177
6420 4012 6420 4010 6420 4167 6420 4165
Colour: white yellow brown green
Base: Methacrylic ester Dimethacrylate ester Methacrylate ester Methacrylate ester
Consistency (25°C) [mPas]: 180.000 - 3.300.000 18.000-30.000 500 2.500-4.000
Density (25°C) [g/cm³]: 1,1 1,05 1,05 1,1
Temperature resistance: -55 °C up to +150 °C -55 °C up to +150 °C -55 °C up to +150 °C -55 °C up to + 200 °C
Max. gap filling [mm]: 0,5 0,5 0,15 0,3
Breakaway torque [Nm]: 4-8 10-20 12-16 28-36
Shear strength (DIN 54452) [N/mm²]: 2-6 6-13 8-12 15-25
Touchable strength [Min.]: 10-20 15-30 10-20 20-40
Functional strength [h]: 1-3 1-3 1-3 6-12
Final strength [h]: 24 3-6 12 24-36
Max. thread [metr/zoll]: M80 / 3“ M80 / 3“ M20 / 3/8“ M56 / 2“
GSVO-classification: - - -
DVGW controlled (DIN EN 751-1): yes yes - -
NSF-registration: yes yes - -

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 802
