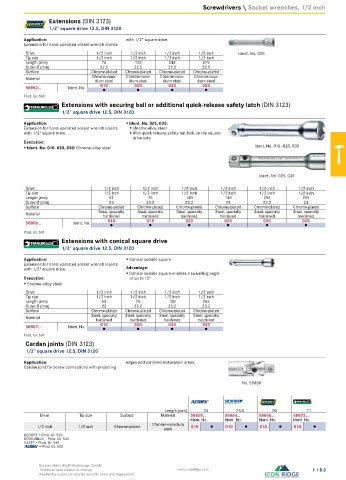

Page 1183 - Icon Ridge Industrial Tools Catalog

Screwdrivers \ Socket wrenches, 1/2 inch
Extensions (DIN 3123)
1/2” square drive 12.5, DIN 3120

Application: with 1/2“ square drive.
Extension for hand-operated socket wrench inserts
Drive 1/2 inch 1/2 inch 1/2 inch 1/2 inch Ident. No. 020
Tip size 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Length (mm) 76 123 248 575
Outer Ø (mm) 22.5 22.5 22.5 22.5
Surface Chrome-plated Chrome-plated Chrome-plated Chrome-plated
Material Chrome-vana- Chrome-vana- Chrome-vana- Chrome-vana-
dium steel
dium steel
dium steel
dium steel
58852... Ident. No. 010 020 030 040
●
●
●
●
Prod. Gr. 569
Extensions with securing ball or additional quick-release safety latch (DIN 3123)
1/2” square drive 12.5, DIN 3120
Application: ƒ Ident. No. 025, 035:
Extension for hand-operated socket wrench inserts ƒ chrome-alloy steel
with 1/2“ square drive. ƒ With quick release safety nut lock on the square
drive side
Execution:
ƒ Ident. No. 010–020, 030: Chrome-alloy steel Ident. No. 010–020, 030
Ident. No. 025, 035
Drive 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Tip size 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Length (mm) 52 75 130 130 255 255
Outer Ø (mm) 23 23.2 23.2 23 23.2 23
Surface Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated Chrome-plated
Material Steel, specially Steel, specially Steel, specially Steel, specially Steel, specially Steel, specially
hardened
hardened
hardened
hardened
hardened
hardened
58856... Ident. No. 010 015 020 025 030 035
●
●
●
●
●
●
Prod. Gr. 531
Extensions with conical square drive
1/2” square drive 12.5, DIN 3120
Application: ƒ Conical outside square
Extension for hand-operated socket wrench inserts
with 1/2“ square drive. Advantage:
ƒ Conical outside square enables a swivelling angle
Execution: of up to 15°
ƒ Chrome-alloy steel
Drive 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Tip size 1/2 inch 1/2 inch 1/2 inch 1/2 inch
Length (mm) 52 75 130 255
Outer Ø (mm) 23 23.2 23.2 23.2
Surface Chrome-plated Chrome-plated Chrome-plated Chrome-plated
Material Steel, specially Steel, specially Steel, specially Steel, specially
hardened
hardened
hardened
hardened
58857... Ident. No. 010 020 030 040
●
●
●
●
Prod. Gr. 531
Cardan joints (DIN 3123)
1/2” square drive 12.5, DIN 3120
Application: edges and confined installation areas.
Cardan joint for screw connections with projecting
No. 58858
Length (mm) 75 73.5 70 71
Drive Tip size Surface Material 58858... 58864... 58868... 58872...
Ident. No. Ident. No. Ident. No. Ident. No.
1/2 inch 1/2 inch Chrome-plated Chrome-vanadium 010 ● 010 ● 010 ● 010 ●
steel
GEDORE = Prod. Gr. 530
STAHLWILLE = Prod. Gr. 531
HAZET = Prod. Gr. 569
a = Prod. Gr. 582
Source: Hahn+Kolb Werkzeuge GmbH
Technical data subject to change. www.iconridge.com 1183
Availability subject to country specific rules and regulations.
