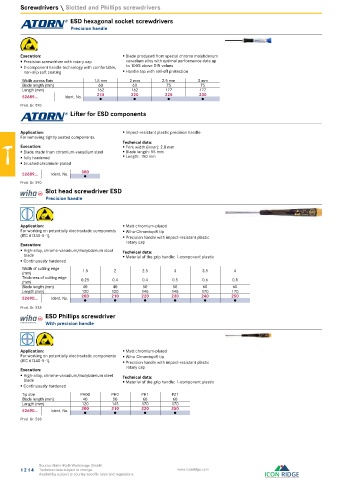

Page 1214 - Icon Ridge Industrial Tools Catalog

Screwdrivers \ Slotted and Phillips screwdrivers
ESD hexagonal socket screwdrivers
Precision handle

Execution: ƒ Blade produced from special chrome molybdenum
ƒ Precision screwdriver with rotary cap vanadium alloy with optimal performance data up
ƒ 2-component handle technology with comfortable, to 100% above DIN values
non-slip soft coating ƒ Handle top with roll-off protection
Width across flats 1.5 mm 2 mm 2.5 mm 3 mm
Blade length (mm) 60 60 75 75
Length (mm) 162 162 177 177
52689... Ident. No. 215 220 225 230
●
●
●
●
Prod. Gr. 590
Lifter for ESD components
Application: ƒ Impact-resistant plastic precision handle
For removing tightly seated components.
Technical data:
Execution: ƒ Fork width (inner): 2.0 mm
ƒ Blade made from chromium-vanadium steel ƒ Blade length: 55 mm
ƒ fully hardened ƒ Length: 150 mm
ƒ brushed chromium-plated
52689... Ident. No. 300
●
Prod. Gr. 590
Slot head screwdriver ESD
Precision handle

Application: ƒ Matt chromium-plated
For working on potentially electrostatic components ƒ Wiha-Chromtop® tip
(IEC 61340-5-1). ƒ Precision handle with impact-resistant plastic
Execution: rotary cap
ƒ High-alloy, chrome-vanadium/molybdenum steel Technical data:
blade ƒ Material of the grip handle: 1-component plastic
ƒ Continuously hardened
Width of cutting edge 1.5 2 2.5 3 3.5 4
(mm)
Thickness of cutting edge 0.25 0.4 0.4 0.5 0.6 0.8
(mm)
Blade length (mm) 40 40 50 50 60 60
Length (mm) 120 120 145 145 170 170
52690... Ident. No. 200 210 220 230 240 250
●
●
●
●
●
●
Prod. Gr. 533
ESD Phillips screwdriver
With precision handle
Application: ƒ Matt chromium-plated
For working on potentially electrostatic components ƒ Wiha-Chromtop® tip
(IEC 61340-5-1). ƒ Precision handle with impact-resistant plastic
Execution: rotary cap
ƒ High-alloy, chrome-vanadium/molybdenum steel Technical data:
blade ƒ Material of the grip handle: 1-component plastic
ƒ Continuously hardened
Tip size PH00 PH0 PH1 PZ1
Blade length (mm) 40 50 60 60
Length (mm) 120 145 170 170
52690... Ident. No. 300 310 320 350
●
●
●
●
Prod. Gr. 533

Source: Hahn+Kolb Werkzeuge GmbH
