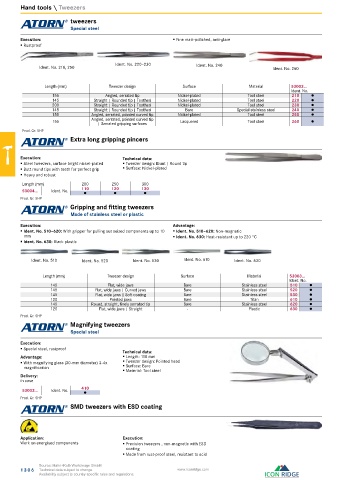

Page 1304 - Icon Ridge Industrial Tools Catalog

Hand tools \ Tweezers
tweezers
Special steel

Execution: ƒ Fine matt-polished, anti-glare
ƒ Rustproof

Ident. No. 220–230 Ident. No. 240
Ident. No. 210, 250 Ident. No. 260

Length (mm) Tweezer design Surface Material 53003...
Ident. No.
155 Angled, serrated tip Nickel-plated Tool steel 210 ●
145 Straight | Rounded tip | Toothed Nickel-plated Tool steel 220 ●
200 Straight | Rounded tip | Toothed Nickel-plated Tool steel 230 ●
145 Straight | Rounded tip | Toothed Bare Special stainless steel 240 ●
155 Angled, serrated, pointed curved tip Nickel-plated Tool steel 250 ●
155 Angled, serrated, pointed curved tip Lacquered Tool steel 260 ●
| Serrated gripping surfaces
Prod. Gr. 5HP
Extra long gripping pincers

Execution: Technical data:
ƒ Steel tweezers, surface bright nickel-plated ƒ Tweezer design: Blunt | Round tip
ƒ Butt round tips with teeth for perfect grip ƒ Surface: Nickel-plated
ƒ Heavy and robust
Length (mm) 200 250 300
53004... Ident. No. 110 120 130
●
●
●
Prod. Gr. 5HP
Gripping and fitting tweezers
Made of stainless steel or plastic
Execution: Advantage:
ƒ Ident. No. 510–620: With gripper for pulling out seized components up to 10 ƒ Ident. No. 510–620: Non-magnetic
mm ƒ Ident. No. 630: Heat-resistant up to 220 °C
ƒ Ident. No. 630: Black plastic

Ident. No. 510 Ident. No. 520 Ident. No. 530 Ident. No. 610 Ident. No. 630

Length (mm) Tweezer design Surface Material 53003...
Ident. No.
145 Flat, wide jaws Bare Stainless steel 510 ●
145 Flat, wide jaws | Curved jaws Bare Stainless steel 520 ●
145 Flat, wide jaws | Soft coating Bare Stainless steel 530 ●
120 Pointed jaws Bare Titan 610 ●
145 Round, straight, finely serrated tip Bare Stainless steel 620 ●
120 Flat, wide jaws | Straight - Plastic 630 ●
Prod. Gr. 5HP
Magnifying tweezers
Special steel
Execution:
ƒ Special steel, rustproof
Technical data:
Advantage: ƒ Length: 110 mm
ƒ With magnifying glass (30-mm diameter) 3-4x ƒ Tweezer design: Pointed head
magnification ƒ Surface: Bare
ƒ Material: Tool steel
Delivery:
in case
53003... Ident. No. 410
●
Prod. Gr. 5HP
SMD tweezers with ESD coating

Application: Execution:
Work on energised components ƒ Precision tweezers , non-magnetic with ESD
coating
ƒ Made from rust-proof steel, resistant to acid

Source: Hahn+Kolb Werkzeuge GmbH
1306 Technical data subject to change. www.iconridge.com
Availability subject to country specific rules and regulations.
