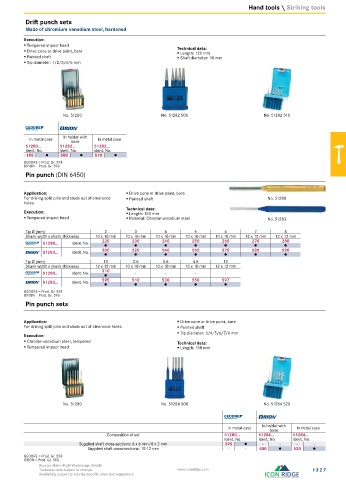

Hand tools \ Striking tools

Drift punch sets
Made of chromium-vanadium steel, hardened

Execution:
ƒ Tempered impact head Technical data:
ƒ Drive cone or drive point, bare ƒ Length: 120 mm
ƒ Painted shaft ƒ Shaft diameter: 10 mm
ƒ Tip diameter: 1/2/3/4/5 mm

No. 51280 No. 51282 500 No. 51282 510

In metal case In holder with In metal case
base
51280... 51282... 51282...
Ident. No. Ident. No. Ident. No.
195 ● 500 ● 510 ●
GEDORE = Prod. Gr. 558
ORION = Prod. Gr. 593
Pin punch (DIN 6450)

Application: ƒ Drive cone or drive point, bare
For driving split pins and studs out of clearance ƒ Painted shaft No. 51280
holes.
Technical data:
Execution: ƒ Length: 150 mm
ƒ Tempered impact head ƒ Material: Chrome-vanadium steel No. 51283

Tip Ø (mm) 2 3 4 5 6 7 8
Shank width x shank thickness 10 x 10 mm 10 x 10 mm 10 x 10 mm 10 x 10 mm 10 x 10 mm 12 x 12 mm 12 x 12 mm
51280... Ident. No. 220 230 240 250 260 270 280
●
●
●
●
●
●
●
51283... Ident. No. 500 520 540 560 570 580 590
●
●
●
●
●
●
●
Tip Ø (mm) 10 2.5 3.5 4.5 12
Shank width x shank thickness 12 x 12 mm 10 x 10 mm 10 x 10 mm 10 x 10 mm 12 x 12 mm
51280... Ident. No. 310 - - - -
●
51283... Ident. No. 595 510 530 550 597
●
●
●
●
●
GEDORE = Prod. Gr. 558
ORION = Prod. Gr. 593
Pin punch sets
Application: ƒ Drive cone or drive point, bare
For driving split pins and studs out of clearance holes. ƒ Painted shaft
Execution: ƒ Tip diameter: 3/4/5/6/7/8 mm
ƒ Chrome-vanadium steel, tempered Technical data:
ƒ Tempered impact head ƒ Length: 150 mm
No. 51280 No. 51284 500 No. 51284 520

In metal case In holder with In metal case
base
Composition of set 51280... 51284... 51284...
Ident. No. Ident. No. Ident. No.
Supplied shaft cross-sections: 6 x 6 mm/8 x 2 mm 395 ● - - - -
Supplied shaft cross-sections: 10-12 mm - - 500 ● 520 ●
GEDORE = Prod. Gr. 558
ORION = Prod. Gr. 593
