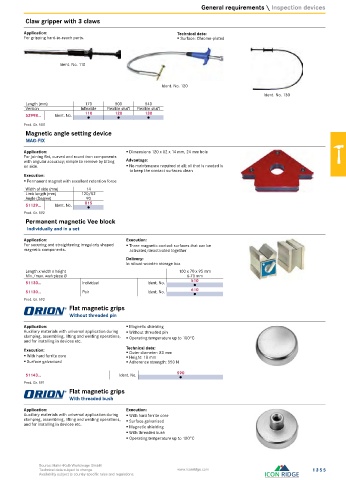

Page 1353 - Icon Ridge Industrial Tools Catalog

General requirements \ Inspection devices
Claw gripper with 3 claws

Application: Technical data:
For gripping hard-to-reach parts. ƒ Surface: Chrome-plated

Ident. No. 110

Ident. No. 120
Ident. No. 130
Length (mm) 170 500 540
Version Inflexible Flexible shaft Flexible shaft
52998... Ident. No. 110 120 130
●
●
●
Prod. Gr. 580
Magnetic angle setting device
MAG-FIX
Application: ƒ Dimensions 120 x 82 x 14 mm, 24 mm hole
For joining flat, curved and round iron components
with angular accuracy; simple to remove by tilting Advantage:
on side. ƒ No maintenance required at all; all that is needed is
to keep the contact surfaces clean
Execution:
ƒ Permanent magnet with excellent retention force
Width of side (mm) 14
Limb length (mm) 120/82
Angle (Degree) 90
51129... Ident. No. 015
●
Prod. Gr. 592
Permanent magnetic Vee block
Individually and in a set

Application: Execution:
For securing and straightening irregularly shaped ƒ Three magnetic contact surfaces that can be
magnetic components. activated/deactivated together
Delivery:
In robust wooden storage box
Length x width x height 100 x 70 x 95 mm
Min./max. workpiece Ø 6-70 mm
51130... Individual Ident. No. 510
●
51130... Pair Ident. No. 610
●
Prod. Gr. 592
Flat magnetic grips
Without threaded pin

Application: ƒ Magnetic shielding
Auxiliary materials with universal application during ƒ Without threaded pin
clamping, assembling, lifting and welding operations, ƒ Operating temperature up to 100°C
and for installing in devices etc.
Execution: Technical data:
ƒ Outer diameter: 80 mm
ƒ With hard ferrite core ƒ Height: 18 mm
ƒ Surface galvanised ƒ Adherence strength: 550 N
51143... Ident. No. 590
●
Prod. Gr. 591
Flat magnetic grips
With threaded bush
Application: Execution:
Auxiliary materials with universal application during ƒ With hard ferrite core
clamping, assembling, lifting and welding operations, ƒ Surface galvanised
and for installing in devices etc. ƒ Magnetic shielding
ƒ With threaded bush
ƒ Operating temperature up to 100°C
