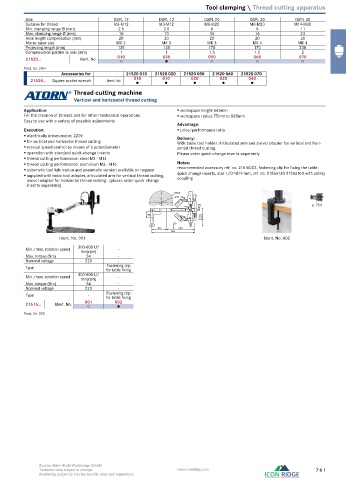

P. 761
Tool clamping \ Thread cutting apparatus
Size DSPL 12 DSPL 12 DSPL 20 DSPL 20 DSPL 30
Suitable for thread M3-M12 M3-M12 M8-M20 M8-M20 M14-M30
Min. clamping range Ø (mm) 2.5 2.5 6 6 11
Max. clamping range Ø (mm) 10 10 16 16 23
Axial length compensation (mm) 20 20 20 20 30
Morse taper size MK 2 MK 3 MK 3 MK 4 MK 4
Projecting length (mm) 135 135 170 170 230
Compensation parallel to axis (mm) 1 1 1.5 1.5 2
21520... Ident. No. 010 020 050 060 070
○
●
○
○
○
Prod. Gr. 2AH
Accessories for 21520 010 21520 020 21520 050 21520 060 21520 070
21528... Square socket wrench Ident. No. 010 010 020 020 040
●
●
●
●
●
Thread cutting machine
Vertical and horizontal thread cutting
Application: workspace height 565mm
For the creation of threads and for other mechanical operations. workspace radius 75mm to 885mm
Easy to use with a variety of possible adjustments
Advantage:
Execution: price/performance ratio
electrically driven motor, 220V Delivery:
for vertical and horizontal thread cutting With basic tool holder. Articulated arm and swivel adapter for vertical and hori-
manual speed control by means of a potentiometer zontal thread cutting.
operation with standard quick-change inserts Please order quick-change inserts separately
thread cutting performance: steel M2 - M14
thread cutting performance: aluminium M2 - M16 Notes:
automatic tool lubrication and pneumatic version available on request recommended accessory ref. no. 21616002, fastening clip for fixing the table.
supplied with basic tool adapter, articulated arm for vertical thread cutting, quick change inserts, size 1/D=Ø19 mm, ref. no. 21566130 21566160 with safety
coupling
swivel adapter for horizontal thread cutting. (please order quick-change
inserts separately)
R885
R75 D d D1
L1
p. 754
120 396
+120
=516
10
305 580
885
Ident. No. 001 Ident. No. 002
Min./max. rotation speed 300-600 U/ -
min(rpm)
Max. torque (Nm) 34 -
Nominal voltage 220 -
Type - Fastening clip
for table fixing
Min./max. rotation speed 300-600 U/ -
min(rpm)
Max. torque (Nm) 34 -
Nominal voltage 220 -
Type - Fastening clip
for table fixing
21616... Ident. No. 001 002
●
○
Prod. Gr. 225
