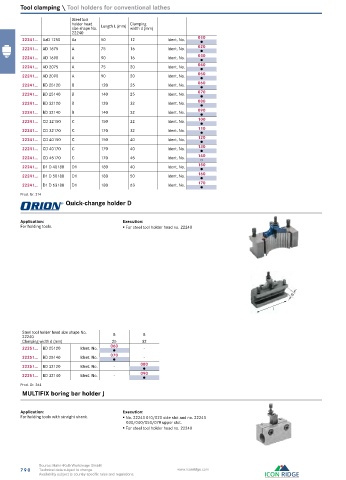

Page 790 - Industrial Tools Catalog (1)

Tool clamping \ Tool holders for conventional lathes
Steel tool
holder head Length L (mm) Clamping
size shape No. width d (mm)
22240
22241... AaD 1250 Aa 50 12 Ident. No. 010
●
22241... AD 1675 A 75 16 Ident. No. 020
●
22241... AD 1690 A 90 16 Ident. No. 030
●
22241... AD 2075 A 75 20 Ident. No. 040
●
22241... AD 2090 A 90 20 Ident. No. 050
●
22241... BD 25120 B 120 25 Ident. No. 060
●
22241... BD 25140 B 140 25 Ident. No. 070
●
22241... BD 32120 B 120 32 Ident. No. 080
●
22241... BD 32140 B 140 32 Ident. No. 090
●
22241... CD 32150 C 150 32 Ident. No. 100
●
22241... CD 32170 C 170 32 Ident. No. 110
●
22241... CD 40150 C 150 40 Ident. No. 120
●
22241... CD 40170 C 170 40 Ident. No. 130
●
22241... CD 45170 C 170 45 Ident. No. 140
○
22241... D1 D 40180 D1 180 40 Ident. No. 150
●
22241... D1 D 50180 D1 180 50 Ident. No. 160
●
22241... D1 D 63180 D1 180 63 Ident. No. 170
●
Prod. Gr. 214
Quick-change holder D
Application: Execution:
For holding tools. ƒ For steel tool holder head no. 22240

d

l

Steel tool holder head size shape No.
22240 B B
Clamping width d (mm) 25 32
22251... BD 25120 Ident. No. 060 -
●
22251... BD 25140 Ident. No. 070 -
●
22251... BD 32120 Ident. No. - 080
●
22251... BD 32140 Ident. No. - 090
●
Prod. Gr. 264
MULTIFIX boring bar holder J

Application: Execution:
For holding tools with straight shank. ƒ No. 22243 010/020 side slot and no. 22243
030/040/050/070 upper slot.
ƒ For steel tool holder head no. 22240

Source: Hahn+Kolb Werkzeuge GmbH
