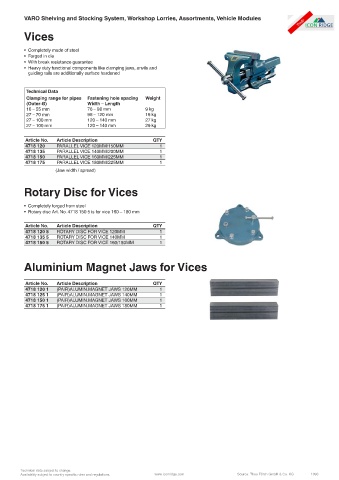

Page 1090 - Icon Ridge Automotive & Truck Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Vices

• Completely made of steel
• Forged in die
• With break resistance guarantee
• Heavy duty functional components like clamping jaws, anvils and
guiding rails are additionally surface hardened

Technical Data
Clamping range for pipes Fastening hole spacing Weight
(Outer-Ø) Width – Length
16 – 55 mm 76 – 98 mm 9 kg
27 – 70 mm 96 – 120 mm 16 kg
27 – 100 mm 120 – 140 mm 27 kg
27 – 100 mm 120 – 140 mm 29 kg

Article No. Article Description QTY
4718 120 PARALLEL VICE 120MM/150MM 1
4718 135 PARALLEL VICE 140MM/200MM 1
4718 150 PARALLEL VICE 160MM/225MM 1
4718 175 PARALLEL VICE 180MM/225MM 1
(Jaw width / spread)

Rotary Disc for Vices

• Completely forged from steel
• Rotary disc Art. No. 4718 150 5 is for vice 160 – 180 mm

Article No. Article Description QTY
4718 120 5 ROTARY DISC FOR VICE 120MM 1
4718 135 5 ROTARY DISC FOR VICE 140MM 1
4718 150 5 ROTARY DISC FOR VICE 160/180MM 1

Aluminium Magnet Jaws for Vices

Article No. Article Description QTY
4718 120 1 (PAIR)ALUMIN.MAGNET JAWS 120MM 1
4718 125 1 (PAIR)ALUMIN.MAGNET JAWS 140MM 1
4718 150 1 (PAIR)ALUMIN.MAGNET JAWS 160MM 1
4718 175 1 (PAIR)ALUMIN.MAGNET JAWS 180MM 1

Technical data subject to change.
