VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

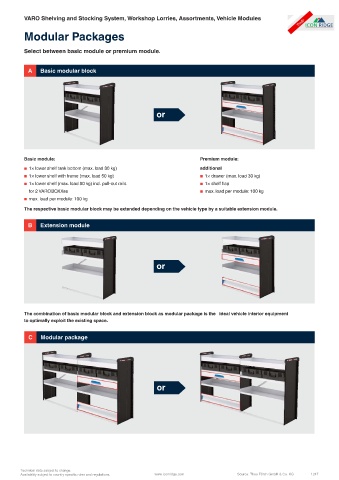

Modular Packages

Select between basic module or premium module.

A Basic modular block

or

Basic module: Premium module:
■ 1× lower shelf tank bottom (max. load 80 kg) additional
■ 1× lower shelf with frame (max. load 50 kg) ■ 1× drawer (max. load 30 kg)
■ 1× lower shelf (max. load 80 kg) incl. pull-out rails ■ 1× shelf flap
for 2 VAROBOXXes ■ max. load per module: 100 kg
■ max. load per module: 100 kg
The respective basic modular block may be extended depending on the vehicle type by a suitable extension module.

B Extension module

or

The combination of basic modular block and extension block as modular package is the ideal vehicle interior equipment
to optimally exploit the existing space.

C Modular package

or

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1247
