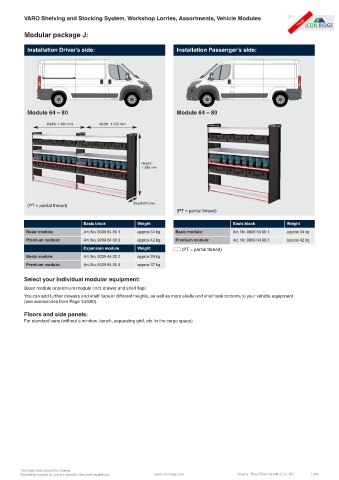

Page 1269 - Icon Ridge Automotive & Truck Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Modular package J:

Installation Driver’s side: Installation Passenger’s side:
Links (Fahrerseite):
Rechts (Beifahrerseite):

Module 64 – 80 Module 64 – 80

Width: 1.488 mm Width: 1.433 mm

Height:
1.386 mm

Depth370 mm
(PT = partial thread)
(PT = partial thread)

Basis block Weight Basis block Weight
Basic module: Art. No. 9009 64 80 1 approx 34 kg Basic module: Art. No. 9009 64 80 1 approx 34 kg
Premium module: Art. No. 9009 64 80 3 approx 42 kg Premium module: Art. No. 9009 64 80 3 approx 42 kg
Expansion module Weight (PT = partial thread)
Basic module: Art. No. 9009 64 80 2 approx 29 kg
Premium module: Art. No. 9009 64 80 4 approx 37 kg

Select your individual modular equipment:
Basic module or premium module (incl. drawer and shelf flap)
You can add further drawers and shelf flaps in different heights, as well as more shelfs and shelf tank bottoms to your vehicle equipment
(see accessories from Page 18/890).
Floors and side panels:
For standard vans (without a window, bench, separating grid, etc. in the cargo space)

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1269
