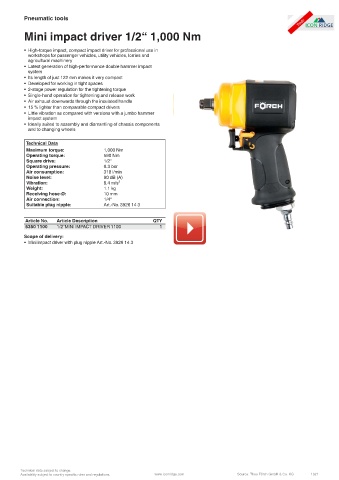

Page 1321 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Mini impact driver 1/2“ 1,000 Nm

• High-torque impact, compact impact driver for professional use in
workshops for passenger vehicles, utility vehicles, lorries and
agricultural machinery
• Latest generation of high-performance double hammer impact
system
• Its length of just 122 mm makes it very compact
• Developed for working in tight spaces
• 2-stage power regulation for the tightening torque
• Single-hand operation for tightening and release work
• Air exhaust downwards through the insulated handle
• 15 % lighter than comparable compact drivers
• Little vibration as compared with versions with a jumbo hammer
impact system
• Ideally suited to assembly and dismantling of chassis components
and to changing wheels

Technical Data
Maximum torque: 1,000 Nm
Operating torque: 590 Nm
Square drive: 1/2“
Operating pressure: 6.3 bar
Air consumption: 318 l/min
Noise level: 90 dB (A)
Vibration: 8.4 m/s²
Weight: 1.1 kg
Receiving hose-Ø: 10 mm
Air connection: 1/4“
Suitable plug nipple: Art.-No. 3926 14 3

Article No. Article Description QTY
5350 1100 1/2"MINI IMPACT DRIVER 1100 1

Scope of delivery:
• Mini impact driver with plug nipple Art.-No. 3926 14 3

Technical data subject to change.
