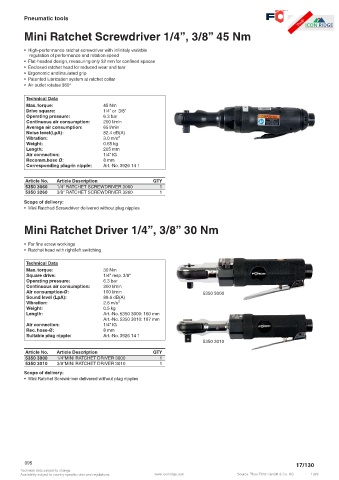

Page 1329 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Mini Ratchet Screwdriver 1/4”, 3/8” 45 Nm

• High-performance ratchet screwdriver with infinitely variable
regulation of performance and rotation speed
• Flat-headed design, measuring only 32 mm for confined spaces
• Enclosed ratchet head for reduced wear and tear
• Ergonomic and insulated grip
• Patented lubrication system at ratchet collar
• Air outlet rotates 360°

Technical Data
Max. torque: 45 Nm
Drive square: 1/4” or 3/8”
Operating pressure: 6.3 bar
Continuous air consumption: 200 l/min
Average air consumption: 65 l/min
Noise level(LpA): 82.4 dB(A)
Vibration: 3.0 m/s²
Weight: 0.65 kg
Length: 205 mm
Air connection: 1/4” IG
Recomm.hose Ø: 8 mm
Corresponding plug-in nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5350 3060 1/4" RATCHET SCREWDRIVER 3060 1
5350 3260 3/8" RATCHET SCREWDRIVER 3260 1
Scope of delivery:
• Mini Ratched Screwdriver delivered without plug nipples

Mini Ratchet Driver 1/4”, 3/8” 30 Nm

• For fine screw workings
• Ratchet head with right/left switching

Technical Data
Max. torque: 30 Nm
Square drive: 1/4” resp. 3/8”
Operating pressure: 6.3 bar
Continuous air consumption: 300 l/min
Air consumption-Ø: 100 l/min 5350 3000
Sound level (LpA): 89.6 dB(A)
Vibration: 2.8 m/s²
Weight: 0.5 kg
Length: Art.-No. 5350 3000: 160 mm
Art.-No. 5350 3010: 187 mm
Air connection: 1/4” IG
Rec. hose-Ø: 8 mm
Suitable plug nipple: Art.-No. 3926 14 1
5350 3010

Article No. Article Description QTY
5350 3000 1/4"MINI RATCHET DRIVER 3000 1
5350 3010 3/8"MINI RATCHET DRIVER 3010 1
Scope of delivery:
• Mini Ratchet Screwdriver delivered without plug nipples

095
17/130
Technical data subject to change.
