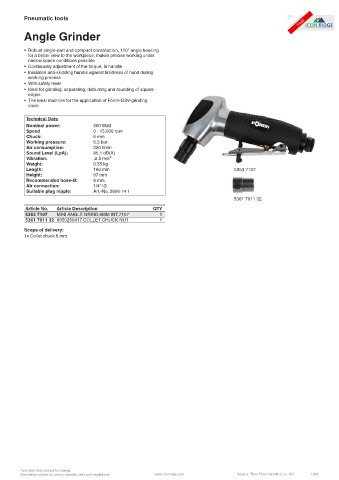

Page 1366 - Icon Ridge Automotive & Truck Catalog

Pneumatic tools

Angle Grinder

• Robust single-part and compact construction, 110° angle housing
for a better view to the workpiece, makes precise working under
narrow space conditions possible
• Continuosly adjustment of the torque, in handle
• Insulated anti-skidding handle against tiredness of hand during
working process
• With safety lever
• Ideal for grinding, separating, deburring and rounding of square
edges
• The ideal machine for the application of Förch-GSV-grinding
discs

Technical Data
Nominal power: 300 Watt
Speed 0 - 15,000 rpm
Chuck: 6 mm
Working pressure: 6.3 bar
Air consumption: 320 l/min
Sound Level (LpA): 85.1 dB(A)
Vibration: ‹2.5 m/s²
Weight: 0.55 kg
Length: 160 mm 5353 7107
Height: 97 mm
Recommended hose-Ø: 8 mm
Air connection: 1/4“ IG
Suitable plug nipple: Art.-No. 3926 14 1
5361 7011 32
Article No. Article Description QTY
5353 7107 MINI ANGLE GRIND.6MM INT.7107 1
5361 7011 32 8950250417 COLLET CHUCK NUT 1
Scope of delivery:
1x Collet chuck 6 mm

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1366
